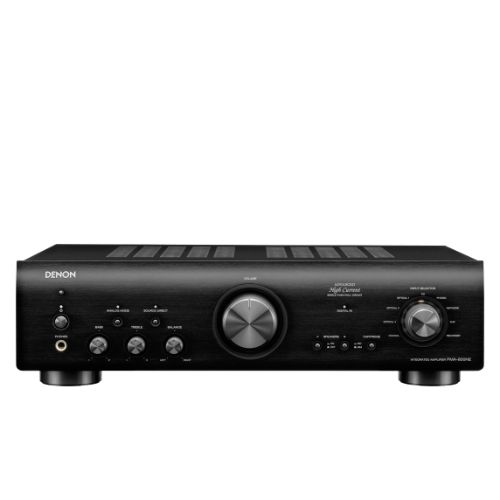

Denon PMA800NE Integrated Stereo Amplifier
Product Specifications-
| Asynchronous mode rear USB | No |
| Bit-perfect transmission | No |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | No |
| Ground isolator for DAC Mode operation | No |
| Channels | 2 |
| Advanced HC-TR single push pull circuit | Yes |
| Wide range amplifier | Yes |
| High current dynamic power supply | Yes |
| Power amp discrete construction | Yes |
| Micro processor auto off | Yes |
| Solid Heat Sinks | Yes |
| Source Direct | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
| Bluetooth / aptX / NFC | No |
| Digital in: USB-B / optical / coaxial / USB-A | No |
| Sample Rate digital In | No |
| USB-B PCM sample rate | No |
Inputs/Outputs
| Speaker A / B | Yes |
| Headphone Out | Yes |
| Headphone Gain Control (low / mid / high) | No |
| Gold plated Cinch | Yes |
| Remote Control Bus in / out | Yes |
| Audio Inputs | 5 |
| Digital in: USB-B / optical / coaxial | No / Yes / Yes |
| Phono Input: MM / MC | Yes / Yes |
| Audio Outputs | 1 |
| Pre-out / Main-in | No / No |
| Number of terminals | 4 |
| Total Harmonic Distortion | 0.01 % (Rated output: –3 dB), 8 Ω/ohms, 1 kHz |
| Output power 8 Ohm (20 Hz – 20 kHz, T.H.D. 0.07%) | 50 W + 50 W |
| Output power 4 Ohm (1 kHz, T.H.D. 0.7%) | 85 W + 85 W |
| Input Sensitivity: MM | PHONO (MM): 2.5 mV / 47 kΩ/kohms PHONO (MC): 200 μV / 100 Ω/ohms |
| Signal to Noise Ratio: MM/MC | 86 dB / 71 dB |
| Input Sensitivity: High level | 105 mV / 40 kΩ/kohms (SOURCE DIRECT: Off) 105 mV / 17 kΩ/kohms (SOURCE DIRECT: On) |
| Signal to Noise Ratio: High level | 105 dB |
| Treble Control | 10 kHz ±8 dB |
| Bass Control | 100 Hz ±8 dB |
| Metal Front Panel | Yes |
| Power Consumption in W | 200 |
| Standby Consumption in W | 0.3 |
| Remote Control | RC-1173 |
| Auto Power Off | Yes |
| Detachable Power Cable | Yes |
| Weight in kg | 7.5 |
| Available colors: Premium Silver / Black | No / Yes |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in inches | 13 5/8 x 10 1/2 x 4 7/8 |
