Yamaha YHT-3072 5.1 Home Theatre set up

Yamaha YHT-3072 5.1 Home Theatre set up

The Yamaha YHT-3072 IN is a home theatre system which comes with Dolby TrueHD and DTS HD support. The theatre system comes with Bluetooth connectivity so you can play your music wirelessly. It comes with the latest HDMI standards deliver the sound of 4k video perfectly with the video, it has for 4 in and 1 out HDMI port. You don’t have to go to the cinema if you have the Yamaha YHT3072-IN as you get stereo surround with it which is perfect if you are watching action movies. It has 5.1 channel surround for powerful and clear audio. It also supports HDR (high dynamic range) Video with Dolby Vision and Hybrid Log-Gamma to provide incredible contrast, smooth tone and rich, bright colours to give you full high-definition experience.

Key Features

Full 4K

Providing complete compatibility with the latest HDMI standards, this AV receiver delivers transmission of 4K video at 60 frames/second pass-through. It also supports HDR (high dynamic range) Video including Dolby Vision™ and Hybrid Log-Gamma which provides incredible contrast, smooth tone and rich, bright colours—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.

Experience the Ambience

Exclusive Yamaha CINEMA DSP technology supports playback of HD Audio (Dolby® TrueHD, DTS-HD Master Audio™, etc.), providing natural and expansive sound imaging. CINEMA DSP transforms the dynamics of the listening environment, with acoustic reproduction of famous venues such as the Bottom Line, Roxy Theater, and European cathedrals—letting you experience their ambience right in your room.

Every Room Is Different

YPAO (Yamaha Parametric room Acoustic Optimizer) analyses the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically tuned for optimum performance in your home theatre room.

Built for Performance

The HTR-3072 was designed with a strong focus on achieving exceptionally high clarity sound. It employs a discrete amp configuration and a low-jitter PLL circuit, which contributes to its excellent audio performance.

Designed for Sound

The HTR-3072 features bi-amping capability, driving the treble and bass ranges of the front speakers (L, R) with independent amplifiers. In addition to providing greater power, it also prevents interference between the high and low sounds, further improving the sound of the front speakers.

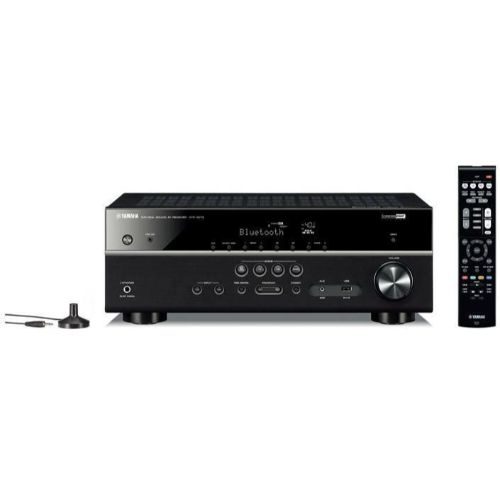

AV Receiver
Amplifier Section	Channel	5.1
	Rated Output Power (1kHz, 1ch driven)	100 W (6 ohms, 0.9% THD)
	Rated Output Power (20Hz-20kHz, 2ch driven)	70 W (6 ohms, 0.09% THD)
	Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	135 W (6 ohms, 10% THD)
	Dynamic Power per Channel (8/6/4/2 ohms)	– / 110 / 130 / 150 W
Surround Sound Processing	CINEMA DSP	Yes
	DSP Programs	17
	Dialog Level Adjustment	Yes
	SILENT CINEMA / Virtual CINEMA DSP	Yes (Virtual CINEMA FRONT)
	Dolby TrueHD	Yes
	Dolby Digital Plus	Yes
	DTS-HD Master Audio	Yes
Audio Features	File Format	MP3 / WMA / MPEG-4 AAC / WAV: up to 48 kHz / 16-bit
	Compressed Music Enhancer	Yes (incl. enhancer for Bluetooth®)
	YPAO sound optimization	Yes
	Adaptive DRC (Dynamic Range Control)	Yes
	Initial Volume & Maximum Volume Setting	Yes
	Audio Delay	Yes (0-500 ms)
	DA Converter	Burr-Brown 384 kHz / 32-bit DAC x 3
Video Features	4K Ultra HD Pass-through and upscaling	Yes (4K / 60p, 4:4:4)
	HDMI 3D passthrough	Yes
	HDMI eARC	Yes (via future firmware update)
	HDMI Audio Return Channel	Yes
	HDMI Up-scaling	Yes (HDMI® to HDMI)
	Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync	Yes
Connectivity	HDMI Input/Output	4 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
	HDMI CEC	Yes
	USB Input	USB Memory, Portable Audio Player
	Bluetooth	Yes (SBC)
	Front AV Input	USB / Mini Jack
	Digital Audio Input/Output: Optical	1/0
	Digital Audio Input/Output: Coaxial	2/0
	Analog Audio Input/Output	3 (front 1) / 0
	Composite Video Input/Output	3/1
	Preout	SW
	Headphone Output	1
Tuner Section	FM/AM Tuner	Yes
User Interface	On-screen display	Yes (colour OSD)
	SCENE	SCENE (4 sets)
	Remote Control Unit	Yes
General	Standby Power Consumption (IR only)	≤0.2W
	Auto Power Standby	Yes
	ECO mode	Yes
	Dimensions (W x H x D)	435 x 161 x 315 mm; 17-1/8” x 6-3/8” x 12-3/8”
	Weight	7.7 kg; 17.0 lbs.

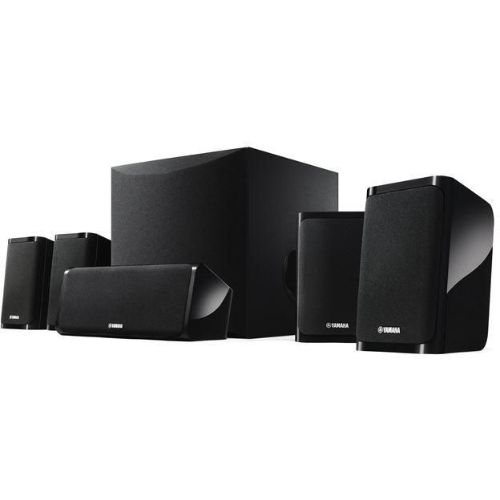

Package Speaker
Channel		5.1
Speaker System	System Frequency Response	28 Hz–25 kHz
	Impedance	6 ohms (without subwoofer)
Front Speaker	Type	Full-range bass-reflex
	Driver	7 cm (2-3/4”) full-range cone
	Nominal Input Power	30 W
	Maximum Input Power	100 W
	Sensitivity	83 dB / 2.83 V / 1 m
	Dimensions (W x H x D)	112 x 176 x 116 mm; 4-3/8” x 6-7/8” x 4-5/8”
	Weight	0.59 kg / unit; 1.3 lbs. / unit
Center Speaker	Type	Full-range acoustic suspension
	Driver	7 cm (2-3/4”) full-range cone
	Nominal Input Power	30 W
	Maximum Input Power	100 W
	Sensitivity	84 dB / 2.83 V / 1 m
	Dimensions (W x H x D)	276 x 111 x 118 mm; 10-7/8” x 4-3/8” x 4-5/8”
	Weight	0.73 kg; 1.61 lbs.
Surround Speaker	Type	Full-range bass-reflex
	Driver	7 cm (2-3/4”) full-range cone
	Nominal Input Power	30 W
	Maximum Input Power	100 W
	Sensitivity	83 dB / 2.83 V / 1 m
	Dimensions (W x H x D)	112 x 176 x 116 mm; 4-3/8” x 6-7/8” x 4-5/8”
	Weight	0.59 kg / unit; 1.3 lbs. / unit
Subwoofer	Type	Advanced YST II
	Driver	20 cm (8”) cone
	Output Power	50 W (5 ohms, 100 Hz, 10% THD)
	Dynamic Power	100 W (5 ohms)
	Frequency Response	28–200 Hz
	Twisted Flare Port	Yes
	Power Consumption	40 W
	Dimensions (W x H x D)	291 x 292 x 341 mm; 11-1/2” x 11-1/2” x 13-3/8”
	Weight	8.5 kg; 18.7 lbs
