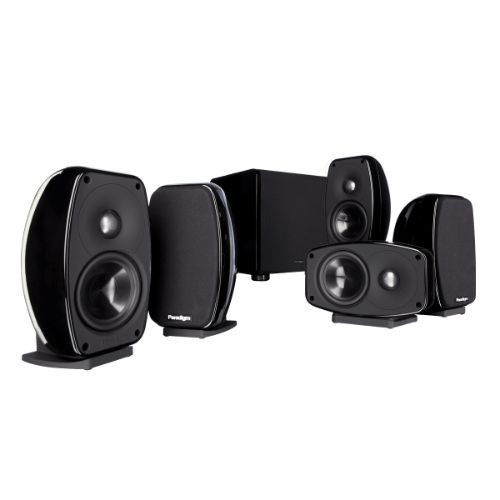

Paradigm CT100 5.1 home theater system
Cinema Satellite Tweeter
Superior S-PAL™ Satin-Anodized Pure-Aluminum Domes with powerful neodymium magnets and ferro-fluid cooling for increased power handling! Highs are transparent with a superb sense of air and exceptional spaciousness.
Wire Mesh Tweeter Guard and WaveGuide™ technology ensure a smooth, wide panorama of audiophile-quality sound.
Cinema Satellite Bass/Midrange Driver
Paradigm’s Cinema speakers deliver fantastic performance through the clever use of technology. Mineral-filled, polypropylene cones; advanced motor structures and high-temperature voice coils easily identify Cinema speakers as uniquely Paradigm.
Cinema Sub Subwoofer
Superior 8˝ High-Excursion Driver made of a durable reinforced polymer composite that in concert with the superior suspension system and motor/magnet structure allow the cone to travel farther while maintaining effective control.
Built-In High-Current, Discrete Output Amplifier:
300 watts Dynamic Peak / 100 watts RMS Sustained.
Dual Ported Design for even and articulate response.
Amplifier Controls:
Auto On / Standby / Soft Clipping
Subwoofer Cut-Off Frequency
Sub / Sat Phase Switch – 0° or 180°
CT100 5.1 Specifications-
| DESIGN | 2-driver, 2-way acoustic suspension, mineral-filled polymer enclosure |
| CROSSOVER | 2nd-order electro-acoustic at 1.8 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±2dB from 125 Hz – 20 kHz |
| HIGH FREQUENCY DRIVER | 25-mm (1 in) S-PAL™ dome tweeter, ferro-fluid damped and cooled |
| MID/BASS FREQUENCY DRIVER | 102-mm (3-1/2 in) mineral-filled polypropylene cone, 25-mm (1 in) high-temperature voice coil, advanced motor structures and oversized ferrite magnets |
| LOW FREQUENCY EXTENSION | 85 Hz (DIN) |
| SENSITIVITY ROOM / ANECHOIC | 88 dB / 85 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2dB from 125 Hz – 15 kHz |
| SUITABLE AMPLIFIER POWER RANGE | 15 – 100 watts |
| MAXIMUM INPUT POWER | 50 watts |
| IMPEDANCE | Compatible with 8 ohms |
| DIMENSIONS HXWXD | 8.375″ × 4.8125″ × 6.8125″ (21.3cm × 12.2cm × 17.3cm) |
| WEIGHT | 4 lbs. (1.8 kg) |
| FINISHES | Black Gloss |
| CINEMA SUB | |
| DESIGN | Single driver, bass reflex, high-velocity low-turbulence resitive ports, built-in amplifier, flexible positioning: gloss side up or cloth side up with feet |
| AMPLIFIER | 300 watts Dynamic Peak; 100 watts RMS Sustained |
| AMPLIFIER FEATURES | Auto-on; standby; soft clipping |
| FREQUENCY RESPONSE ON-AXIS | ±3 dB 42Hz – 150Hz |
| LOW FREQUENCY EXTENSION | 32 Hz (DIN) |
| LOW FREQUENCY DRIVER | 210-mm (8 in) high-excursion reinforced co-polymer |
| IMPEDANCE | 10k ohms |
| DIMENSIONS HXWXD | 13.4375″ × 12.6875″ × 12.6875″ (34.1cm × 32.2cm × 32.2cm) |
| WEIGHT | 21.4 lbs. (9.7 kg) |
| FINISHES | Cloth with Gloss Black |
| LOW PASS FILTER FREQUENCY | Variable 35 Hz – 150 Hz; Bypass Option |
| SUB / SAT PHASE ALIGNMENT | Variable 0° – 180° |
| INPUTS | Two RCA (L/R-Mono) for L/R lineout or Sub-Out/LFE-Out of receiver/processor or other line-level source |
