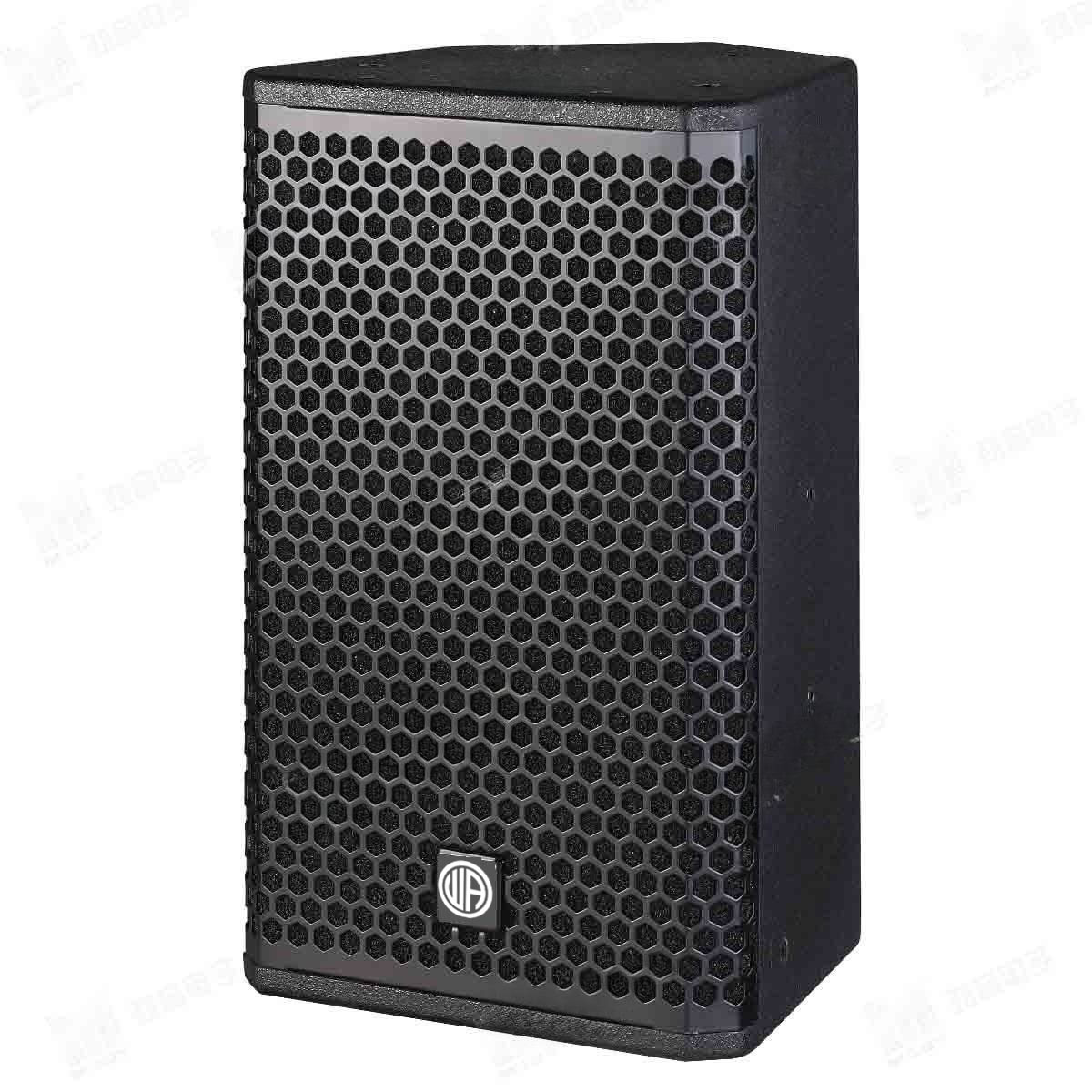

Winston Acoustics Odin
Command the Power of Superior Sound
The Odin by Winston Acoustics is the ultimate gym sound system, designed for those who demand unparalleled power and clarity. Built for high-energy environments, Odin delivers incredible sound performance to motivate, energize, and inspire.
Key Features for Gym Sound Systems
- Immense Power Output: Produces an impressive 400W RMS and a staggering 800W Peak Power, filling even the largest gym spaces with ease.
- Wide Frequency Range: Covers 60Hz to 19kHz (±3dB), delivering deep, resonant bass and crystal-clear highs for all genres of music.
- Exceptional Sensitivity: At 98dB @ 1W/1M, Odin ensures optimal sound output with efficient energy use.
- Maximum SPL: Reaches an astounding 118dB (RMS) and 124dB (Peak) for a truly immersive audio experience.
Engineered for Maximum Performance
- Advanced Driver Technology: Features a powerful 12″ (65mm) LF Driver Unit and a 44mm HF Driver Unit for precise, high-impact audio.
- Wide Sound Coverage: Designed with a 70° x 100° (HxV) cover range, ensuring consistent sound throughout your gym.
- Heavy-Duty Build: Constructed with CNC-manufactured, high-density fiberboard, Odin is built to withstand the rigors of intense fitness environments.
Specifications
| Parameter | Details |
|---|---|
| LF Unit | 1×12″ (65mm) |
| HF Unit | 1x44mm |
| Power Output | 400W (RMS), 800W (PEAK) |
| Frequency Response | 60Hz – 19kHz (±3dB) |
| Sensitivity | 98dB @ 1W/1M |
| Maximum SPL | 118dB (RMS), 124dB (PEAK) |
| Impedance | 8Ω |
| Coverage Range | 70° x 100° (HxV) |
| Hanging Hardware | 12 M8 screws hanging points |
| Bracket Fixed Seat | 35mm base bracket hole |
| Connector | 2xNL4 Socket, +1, -1 |
| Material | CNC-manufactured, high-density fiberboard |
| Weight | 19kg |
| Dimensions (WxDxH) | 360x318x600mm |
Built for Gym Excellence
- Powerful Coverage: Wide-range sound ensures every member in the gym feels the energy.
- Durable Design: Withstands the toughest environments and continuous use.
- Easy Installation: Comes with 12 M8 hanging points and a 35mm base bracket for seamless integration.
Why Choose Winston Acoustics Odin?
- Exceptional sound power and clarity for large gym spaces.
- Robust construction ensures reliability and longevity.
- Superior coverage for an immersive, motivating audio experience.
Let the Winston Acoustics Odin redefine your gym’s sound system. With unmatched performance and durability, Odin is the powerhouse you need to keep energy levels high and workouts inspired. Bring the power of Odin to your gym today!
