Description

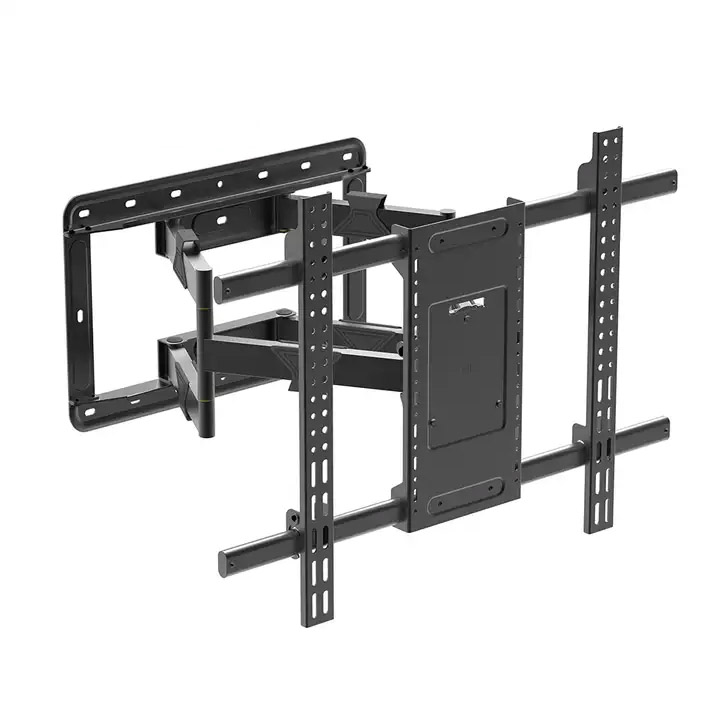

Tono LPC 04 Full Motion TV Wall Mount for 55"–100" TVs
A heavy-duty swivel, tilt and extend wall mount engineered for large screens — including 85", 86" and 98" 4K displays. Holds up to 100 kg, folds flush to just 50 mm, and swivels a full 120°.
Will the LPC 04 fit your TV?
The Tono LPC 04 is rated for flat-panel LED and LCD TVs from 55" to 100", up to 100 kg, with VESA mounting patterns up to 800×600 mm.
Have a 100"+ or 120" display? Those screens often exceed 100 kg and VESA 800×600 — the LPC 04 may not be rated for them. See our heavy-duty options for very large TVs →
Built for big screens, designed to disappear
Every part of the LPC 04 is engineered around one idea — hold a heavy TV rock-steady, then get out of sight.
100 kg load rating
Heavy-gauge steel construction holds large 4K and 8K panels with zero wobble or sag — even a 98" display sits rock-solid.
Up to 120° swivel
Turn the screen toward the kitchen, the sofa, or the dining table. Full articulation means a perfect viewing angle from anywhere in the room.
Extends up to 648 mm
Pull the TV well clear of the wall for cable access or a corner install, then push it back when you're done.
Ultra-slim 50 mm profile
Folded flat, the mount sits just 50 mm from the wall — the TV looks almost flush, like it was never on a bracket at all.
Tilt for glare control
Independent tilt lets you angle the screen down to kill window glare and ceiling-light reflections for a cleaner picture.
VESA up to 800×600
Universal mounting arms fit the VESA hole patterns used by Sony, Samsung, LG and other large-format TV brands. All hardware included.

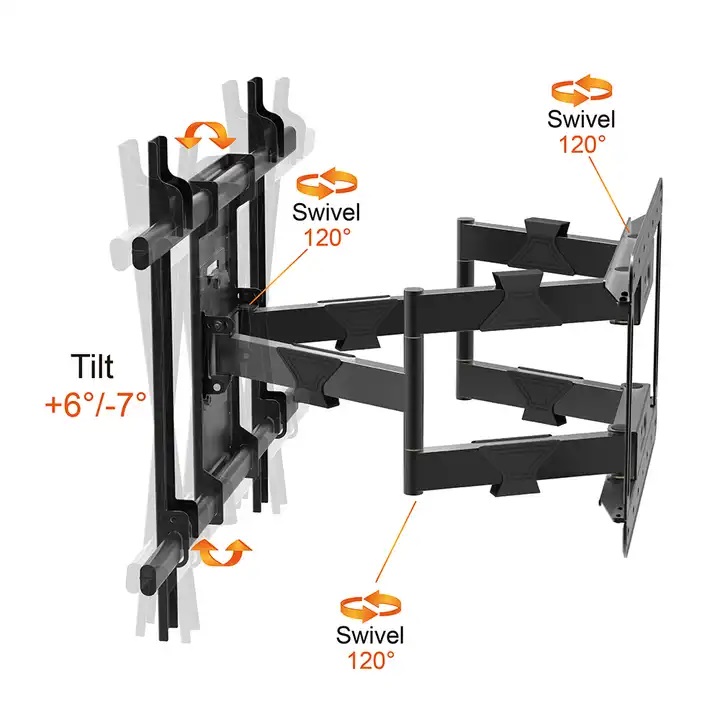

Full range of motion
Swivel, tilt, extend, level — four axes of adjustment so the picture is always exactly where you want it.
Swivel
Turn left or right for off-axis viewing
Extension
Pull out from the wall, push back flush
Folded depth
Sits near-flush when retracted
Tilt & level
Fine-tune angle and post-install levelling
Full technical specifications
Everything you need to confirm fitment before you order. Model LPC 04.
| Model Name | Tono LPC 04 |
| TV Size Range | 55" – 100" (fits 65, 75, 85, 86 & 98 inch TVs) |
| TV Type | LED, LCD flat-panel displays |
| Mount Type | Full motion — swivel and tilt |
| Maximum TV Weight | 100 kg |
| VESA Compliance | Up to 800 × 600 mm |
| Swivel | Up to 120° |
| Maximum Extension from Wall | 648 mm |
| Minimum Depth (folded) | 50 mm |
| Tilt | Adjustable tilt with post-install levelling |
| Product Width | 810 mm |
| Product Height | 610 mm |
| Product Depth | 50 mm (folded) |
| Product Weight | 10 kg |
| Package Width | 830 mm |
| Package Height | 630 mm |
| Package Depth | 60 mm |
| Package Weight | 13 kg |
| Quantity in Box | 1 wall mount + complete fitting hardware |
Easy to install — or let us do it
The LPC 04 ships with all hardware and a clear fitting design. Prefer a professional install? AudioShop installs across Thane & Mumbai.
Mark the wall plate
Use the 810 mm wall plate as a template. Level it and mark your drill points on a solid wall.
Fix the wall plate
Drill and anchor the plate with the supplied heavy-duty hardware. A masonry or concrete wall is recommended for 85"+ TVs.
Attach VESA arms
Bolt the adjustable VESA arms to the back of your TV using the matching VESA pattern up to 800×600.
Hook on & level
Lift the TV onto the mount, secure the locks, then fine-tune tilt and level. Done.
In the box
Every LPC 04 ships complete — no extra trips to the hardware store.
- 1 × Tono LPC 04 full motion TV wall mount
- 1 × 810 mm wall mounting plate
- 2 × Adjustable VESA arms (up to 800×600)
- Complete wall-fixing hardware set
- TV-side VESA bolt & spacer kit
- Fitting instructions
Got a 100"+ or 120" TV?
The LPC 04 is rated to 100 kg and 100". Many 100", 110" and 120" displays are heavier and use larger VESA patterns. Tell us your exact TV make, model and weight — we'll recommend a heavy-duty mount or a custom mounting solution rated for your screen, and install it safely.
Frequently asked questions
Will the Tono LPC 04 fit an 85 inch TV?
Yes. The LPC 04 is rated for TVs from 55" to 100" and weights up to 100 kg, so an 85" TV is well within range. Most 85" TVs weigh 40–55 kg and use a VESA 600×400 or 800×400 pattern — both supported. Confirm your TV's VESA pattern is within 800×600 before ordering.
Does it work with an 86 inch TV?
Yes. An 86" TV (popular sizes from LG and others) sits comfortably within the LPC 04's 55"–100" range and 100 kg load rating. The adjustable VESA arms accommodate the wide mounting patterns used on 86" panels.
Can I mount a 98 inch TV on the LPC 04?
A 98" TV is within the rated 100" size limit. The key checks are weight and VESA: many 98" TVs weigh 60–80 kg (under the 100 kg limit) and use a VESA 800×600 pattern (the LPC 04's maximum). Send us your exact 98" model and we'll confirm fitment before you buy.
Is the LPC 04 suitable for a 100 inch or 120 inch TV?
The LPC 04 is officially rated up to 100" and 100 kg. A 100" TV near that weight may fit — contact us to confirm. For 110" and 120" displays, which are usually heavier and use larger VESA patterns, we recommend a dedicated heavy-duty or custom mount instead. WhatsApp us your TV model and we'll spec the right solution.
How far does the TV move out from the wall?
The LPC 04 extends up to 648 mm from the wall and folds back to just 50 mm when retracted. It also swivels up to 120°, so you can angle the screen across the room and return it near-flush afterwards.
What wall do I need for a large TV mount?
For 85" and larger TVs, a solid masonry, brick, or concrete wall is strongly recommended. Drywall or hollow partition walls need proper backing or a stud-mounted solution. If you're unsure, our installation team can assess your wall during a site visit in Thane and Mumbai.
Do you provide installation?
Yes. AudioShop offers professional TV mount installation across Thane, Mumbai and Navi Mumbai, including wall assessment, cable management and levelling. Pan-India delivery is available, and we can guide remote installations over a call.
Is all the mounting hardware included?
Yes. Every LPC 04 ships with the wall plate, adjustable VESA arms, wall-fixing hardware and TV-side bolts. It is VESA compatible up to 800×600 and comes with everything needed for a standard installation on a solid wall.
Mount your big screen the right way
Order the Tono LPC 04 full motion TV wall mount with pan-India delivery, or book professional installation in Thane & Mumbai.
