Description

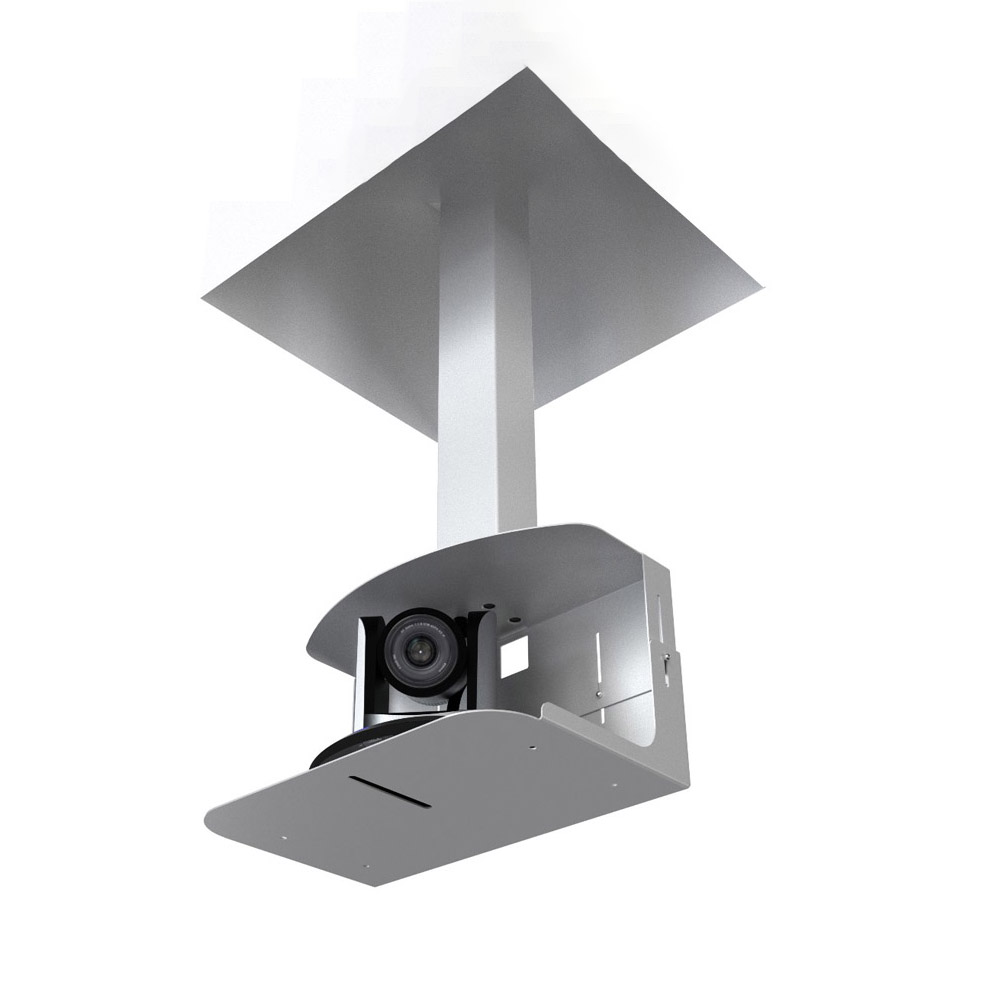

The Tono CLC 40 is a motorized camera lift designed for professional AV installations where the camera should stay hidden until it’s needed. Recessed into the ceiling, it lowers a PTZ or conference camera into position the moment a meeting, lecture, service, or broadcast begins, then retracts it flush when the room returns to in-person use.
Why choose the CLC 40 motorized camera lift
- Conceal and deploy on demand — keeps ceilings clean and protects expensive cameras from dust, impact, and lighting heat between uses.
- Silent, broadcast-safe operation — runs at just 45 dB with Soft Start and Soft Stop; screw-driven mechanism with no exposed tracks, gears, or scissors.
- Automation-ready — wireless RF remote plus LVC for dry-contact integration with major AV and smart-building control systems.
- Built to last — heavy-duty steel construction with a load-support bracket; ships pre-assembled and ready to mount.
Technical specifications
| Spec | Detail |
|---|---|
| Rated load | Up to 40 kg |
| Travel | 660 mm |
| Noise | 45 dB |
| Mechanism | Screw-driven, steel, Soft Start/Stop |
| Power draw | 3.5 A @ 110V / 1.75 A @ 220V at max thrust |
| Dimensions | Closed 69.6 cm / Open 135.6 cm · W 36.5 cm · D 20 cm |
| Control | Wireless RF remote + LVC automation |
| Warranty | 3 years (motor and mechanism) |
Where it’s used
Conference rooms and boardrooms, hybrid classrooms and lecture halls, houses of worship, broadcast and OTT studios, courtrooms, and premium residential AV.
What’s in the box
Pre-assembled motorized lift column, heavy-duty load-support bracket, base plate and upper mounting bracket, control box with power cord, wireless remote, cord control wrap, and all mounting hardware. A custom enclosure matched to your camera is included at no cost.
Frequently asked questions
What does a motorized camera lift do? It raises and lowers a ceiling-mounted PTZ or broadcast camera at the press of a button, hiding it flush with the ceiling when not in use.
Which cameras are compatible? Standard 1/4-20 mounting threads support common PTZ and conference cameras. Contact us for custom mounting plates.
Can it integrate with my control system? Yes — dry-contact triggering works with major AV control platforms.
