Description
Sonodyne Micro HTS 5.1 Speaker System

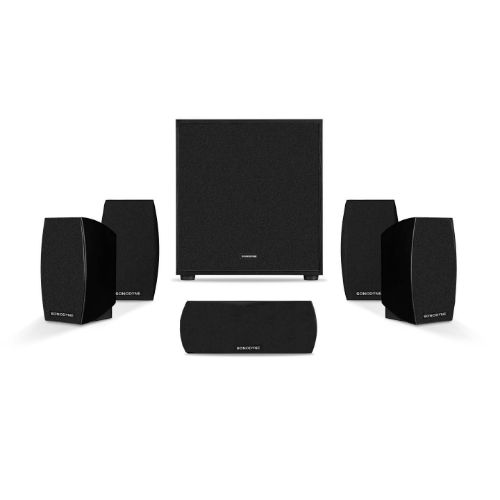

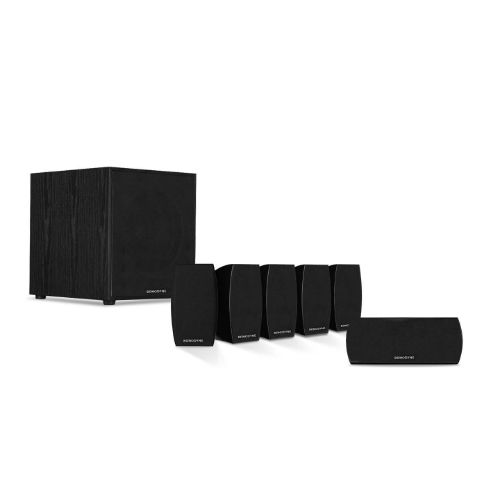

The Micro HTS1 is a complete 5.1 speaker system comprising main channel speakers and a powered subwoofer. The centre channel is Micro 3002 and the LR and surrounds, Micro 3001. The Subwoofer is 100 watt, 8” device, Together, this system is tone matched and produces spectacular multichannel audio in premium spaces.
Main Features-
- 4 x Micro 3001 satellites
- 1 x Macro 3002 centre
- 1 x Micro Sub 100 watt, 8” powered subwoofer
- Wall mount included
- Recommended AVR : 60 ~ 100 watt per channel, 8 ohm
Micro HTS 5.1 Specifications-
MICRO 3002
| DESCRIPTION | 2 way speaker , ported |
| ENCLOSURE | ABS |
| TRANSDUCER COMPLEMENTS: HF | 0.5 inch polycone tweeter |
| TRANSDUCER COMPLEMENTS: LF | 2 x 3 inch woofer |
| RECOMMENDED AMPLIFIER POWER | 40 – 120 watt |
| NOMINAL IMPEDANCE | 8 Ohm |
| SENSITIVITY (1 W 1M) | 90 dB |
| FREQUENCY RESPONSE (-3 dB) | 100Hz – 20kHz |
| FREQUENCY RANGE (-10 dB) | 70Hz – 22kHz |
| CROSSOVER FREQUENCY | 3.5 kHz |
| INPUTS | Binding post |
| COLOURS | Black / White |
| DIMENSIONS (HXWXD) | 100 mm x 261 mm x 100 mm |
| NET WEIGHT | 1.3 kg |
| MOUNTING OPTIONS | Wall mount bracket (inlcuded) |
| PACKED IN | Single |
MICRO 3001
| DESCRIPTION | 2 way speaker , ported |
| ENCLOSURE | ABS |
| TRANSDUCER COMPLEMENTS: HF | 0.5 inch polycone tweeter |
| TRANSDUCER COMPLEMENTS: LF | 3 inch woofer |
| RECOMMENDED AMPLIFIER POWER | 40 – 100 watt |
| NOMINAL IMPEDANCE | 8 Ohm |
| SENSITIVITY (1 W 1M) | 87 dB |
| FREQUENCY RESPONSE (-3 dB) | 100Hz – 20kHz |
| FREQUENCY RANGE (-10 dB) | 80Hz – 22kHz |
| CROSSOVER FREQUENCY | 6.5 kHz |
| INPUTS | Binding post |
| COLOURS | Black / White |
| DIMENSIONS (HXWXD) | 171 mm x 100 mm x 108 mm |
| NET WEIGHT | 0.75 kg |
| MOUNTING OPTIONS | Wall mount bracket (inlcuded) |
| PACKED IN | pairs |
MICRO SUB
| DESCRIPTION | Front firing powered subwoofer ,vented |
|---|---|
| ENCLOSURE | MDF |
| TRANSDUCER COMPLEMENTS | 1 x 8” high excursion subwoofer |
| AMPLIFIER CLASS | Class AB |
| AMPLIFIER POWER | 100 W |
| AMPLIFIER THD | 0.1% at rated power |
| MAX SPL | 109 dB |
| FREQUENCY RESPONSE | 35 Hz (-3 dB) |
| FREQUENCY EXTENSION (-10 DB) | 30 Hz |
| LOW PASS FILTER | 50 Hz ~ 150 Hz |
| PHASE | Switchable: 0 degrees and 180 degrees |
| INPUTS | Left and Right unbalanced RCA type |
| INPUT SENSITIVITY | 80 mV at level control max |
| CONTROLS | Level control, frequency control |
| FINISH | Front: Ash; Outer skin: Option of Black ash or Rosewood |
| DIMENSIONS (HXWXD) MM | 330 x 330 x 429 |
| POWER CONSUMPTION | 130 W Max. |
| NET WEIGHT | 11.7 kg |
| IN THE BOX | Mains cord, user’s manual, Screw-on spike, disc and tightening lever |
