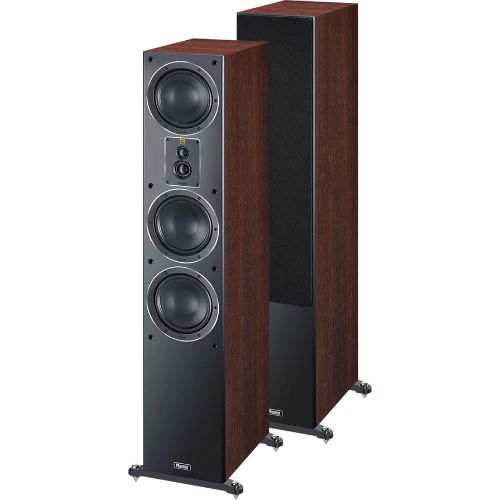

Magnat Signature 507 Floor Standing Speakers (Pair)

Key Features

• Hi-Res certified dual tweeter module with two fmax domes
• 4-way speaker with bass reflex technology
• Klippel-optimized bass-midrange unit and subwoofer
• Ventilated voice-coil unit for maximum resilience and dynamics
• Spikes for secure positioning and acoustic decoupling

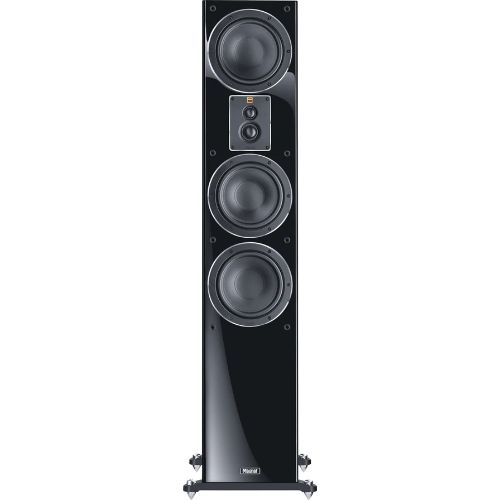

 Signature 500- Entry into the Signature class

The Magnat Signature 500 is the entry level to the world of audiophile hi-fi. Here, elaborate chassis with the latest technologies are combined with production quality that is second to none in this class. And all of this with a system – because, from the audiophile stereo set-up to the ambitious, perfectly sounding home cinema with active subwoofer, everything can be combined entirely to your liking in the Signature entry-level class.

 Elaborate Chassis Technology

The heart of the fabulous high-frequency reproduction is our new hi-res module with two, yes two fmax tweeters.

 Can be combined in a variety of ways

The Signature 500 is available in various versions. This means that fans of pure stereo playback can combine different setups, while home cinema enthusiasts can also choose the perfect combination.

 Exceptional Production Quality

Amply dimensioned terminals not only allow use of the highest-quality cables, they also facilitate bi-wiring and bi-amping, i.e. the use of different cables or amplifiers for bass and treble ranges.

Woofer & Midrange

• Klippel®-optimised overall design
• FE-Dynamics woofer-midrange
• Coated paper cone
• Ventilated voice-coil unit for maximum resilience
• Solid metal basket with generous ventilation openings
• Solid decorative rings, fixed by six screws

 Tweeter & Super -Tweeter

• Newly developed high-res tweeter module with two fmax dome tweeters
• 1.2“ dome tweeter with extra-thick surround for low frequency coupling to the midrange
• Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 50 kHz
• Powerful neodymium ring magnet systems for best dynamics
• Front panel with dedicated sound guidance for optimum dispersion properties

 Enclosure

• Very solid low-resonance construction made of E1 MDF panels
• High-gloss lacquered baffle (black version) or satin lacquered baffle (mocca version)
• Detachable fabric grille
• Airflex port with rounded reflex opening for reducing wind noises
• Resonance-damping rubber feet included
• (Signature 505/507)

Crossover

• Amplitude- and phase-optimised crossover with acoustic 24 dB filters and high-quality components
• Big Bi-Wiring/Bi-Amping connecting terminal with big screw connectors and gold-plated contacts

 Woofer

• 300 mm high-power long-throw woofer with Klippel®-optimized magnet system
• Ventilated high-performance voice coil to guarantee highest operational reliability
• The coated paper cone ensures a profound audio reproduction
• Solid metal basket with generous ventilation openings
• Klippel®-optimised overall design

Amplifier

• High performance class-D amplifier
• Adjustable volume and crossover frequency
• Phase adjustable from 0° to 180°
• Active frequency response equalization up to 120 Hz (LPC circuit) for seamless integration in AV environments
• Automatic standby function with low power consumption <0.5 watts (can be switched off)
• Selectable mains voltage 100-240V
• Mains switch

Cabinet

• “Front-fire“ construction
• Sturdy and low-resonance case design with E1 MDF wooden boards
• High-gloss lacquered baffle (black version) or satin lacquered baffle (mocca version)
• Detachable fabric grille
• Airflex port with rounded reflex opening for reducing wind noises
• Resonance-damping rubber feet included

Product Specifications
