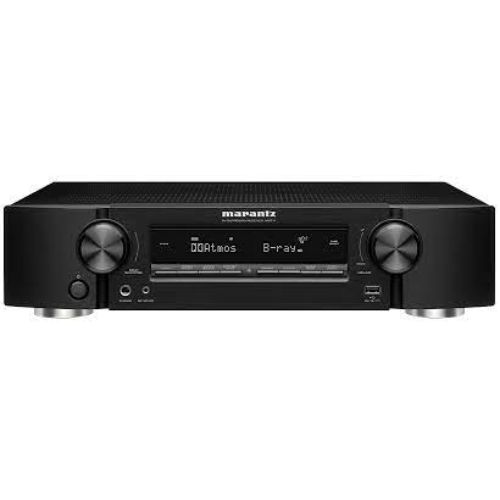

Marantz NR1711 Slim 7.2ch 8K Ultra HD AV Receiver

Marantz NR1711 Slim 7.2ch 8K Ultra HD AV Receiver

The Marantz NR1711 7.2ch 8K Ultra HD AV receiver drives immersive, high-fidelity audio from a compact chassis. At half the height of a traditional AV
receiver, the NR1711 supports multi-dimensional audio formats Dolby Atmos.

Key Features-

• Powerful 7-Channel Discrete Amplifier
• Speaker Virtualizer
• DTS:X
• DTS Virtual
• Masterful 8K HDMI Connectivity

Slim design, exceptional performance:

With a slim profile that is half the height of a traditional AV receiver, the new Marantz NR1711 delivers exceptional performance and sound quality.

7-channel discrete power amplifier for all your entertainment:

Powering 50W per channel (8-ohm, 20Hz – 20kHz, 0.08% THD, 2ch. drive), enjoy your favorite movies in striking quality.

Latest HDMI support: Featuring one dedicated 8K input and one output for 8K quality video from 8K source devices:

8K upscaling available on all six HDMI ports.

 Enhanced Audio Return Channel (eARC) HDMI support:

The eARC HDMI output transmits uncompressed and object-based audio formats like Dolby Atmos and DTS:X directly from a smart TV app to the AV receiver.



TECHNICAL SPECIFICATIONS

Multichannel Surround

DTS HD Master / DTS:X	Yes / Yes
DTS:X Pro	No
DTS Neo:X / DTS Neural:X	No / Yes
DTS Virtual:X	Yes
Dolby TrueHD / Dolby Atmos	Yes / Yes
Dolby ProLogic Il / Dolby Surround	No / Yes
Dolby Height Virtualization	Yes
Front Wide Speakers: Dolby / DTS	No
Auro 3D	No
IMAX Enhanced	No
MPEG-H	No
Multichannel Stereo	Yes
Max Number of Processing (Preamp) Channels	7.1

Sound Enhancements

Single Board Power Amplifier	No
Discrete Power Amplifier	7
Copper Plated Chassis	No
Power Transformer: Toroidal / EI	EI
Current Feedback Topology	No
Hyper Dynamic Amplifier Modules (HDAM)	No
Pure Direct	Yes
High Grade Audio Components	No
Gold plated RCA terminals	No
Clock Jitter Reducer	No
Audyssey	MultEQ
Audyssey Dynamic EQ / Dynamic Volume	Yes / Yes
Audyssey LFC	No
Audyssey APP Support	Yes
Speaker Setup Presets	2
Compressed Audio Enhancer: MDAX2	Yes

Network

HEOS Multi-room and Streaming	Yes
Lossy Formats: MP3 / WMA / AAC	Yes / Yes / Yes
Lossless formats FLAC / ALAC / WAV	Yes / Yes / Yes
DSD Audio Streaming	up to DSD5.6
FLAC HD 192/24	Yes
WAV 192/24	Yes
ALAC 192/24	Yes
Gapless Playback	Yes (FLAC, WAV, ALAC, DSD)
AirPlay 2	Yes
Roon Tested	Yes
Internet radio	TuneIn
Spotify Connect* / Tidal* / Deezer* / others *	Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora*	Yes / Yes
Compatible with Remote APP for Smart Phones	Android / iOS
Compatible with Remote APP for Tablets	Android / iOS/Amazon Kindle
Ethernet Ports	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth Headphone transmission	Yes

HDMI

HDMI Inputs: Back / Front	6 / 0
HDCP2.3 support	Yes
HDMI Outputs: Main / Zone	1 / No
HDMI max Resolution (8k / 4k)	8k/60 – 4k/120
Video Conversion Analog -> HDMI	No
HDMI to HDMI Scaling	up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC	Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG	Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR	Yes / Yes / Yes / Yes
HDMI Pass-Through in Standby Mode	Yes
DSD Audio Capability	No

Multi-Room / CI

HEOS Multi-Room Integrated	Yes
TV Sound grouping	Yes
Multi-Room Zones	2
Main room multichanel audio – Zone stereo downmix	Yes
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog	Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout	Yes / Yes
Zone HDMI Output from HDMI Source	No
Webbrowser Setup	Yes
IP Control / RS232 Control / Web Control / App Control	Yes / No / Yes / Yes
IR Flasher In	No
Marantz Remote Bus	Yes
DC Trigger Output	1

Others

Voice Control – Works with Amazon Alexa	Yes
Voice Control – Google Assist / Apple Siri	Yes / Yes
Voice Control – Microphone built-in	No
Auto Speaker Setup by Microphone	Audyssey MultEQ
FL Display	1 line
Graphic User Interface – GUI	Advanced
ISF Certification	Yes
GUI Languages	9
Setup Assistant	Yes
Smart Select	Yes
Firmware Update by Network USB	Yes / Yes
Variable Cross Over	Yes
Optimized Bass Redirection	Yes
Bass Sync	No
ECO Mode	Yes
Auto Power off	Yes
Sleep / Timer	Yes

Inputs/Outputs

Composite In / Out	3 / 1
Component In / Out	2 / 1
HDMI In / Out	6 / 1
Multi-Room Video Out: Video / HDMI	No / No
Analog In / Out	3 / No
Phono (MM) In	Yes
Digital In: Optical / Coaxial	1 / 1
Multi-Room Out: Analog / Digital	1 / No
Multichannel Pre Out	Yes (2.2)
Subwoofer Out	2
7.1 Multichannel Input	No
Speaker Terminal: Gold Plated Screw / Regular Screw	No / Yes
Number of Speaker Terminals	7
Speaker A / B	assignable
Bi-Amp Drive	assignable
Multi-Room Speaker Terminal	assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB	No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone	Yes / AirPlay / AirPlay
DAB / DAB+ tuner	No
FM Tuner with RDS	Yes

Specifications

Number of poweramps	7
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive)	50 W
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive)	No
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	70 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)	90 W
70% Guarantee	Yes

General

Available Colors: Gold / Silver / Black / Silver-Gold	No / No / Yes / Yes
Metal Front Panel	No
System Remote Control	RC042SR
Pre-Programmed / Learnable / LCD Display	No / No / No
Power Consumption in W	250
Power Consumption No-Sound (ECO on/off) in W	30 W / 40 W
Standby Consumption in W	0.2
CEC Standby Consumption in W	0.5
Network Control On Consumption in W	3.7
Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches	17.3 x 14.8 x 4.1 (17.3 x 14.8 x 6.8 ) 【 17.3 x 14.4 x 4.1】
Weight in lbs.	18.2
Carton Maximum Dimensions (W x D x H) in inches	20.6 x 19.4 x 7.5
Carton Weight (inc. product) in lbs	23.1
