Description

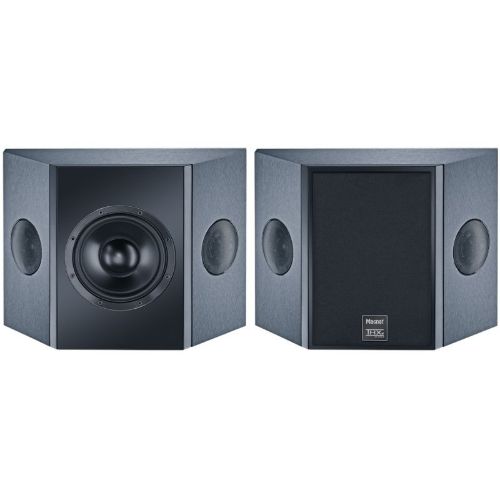

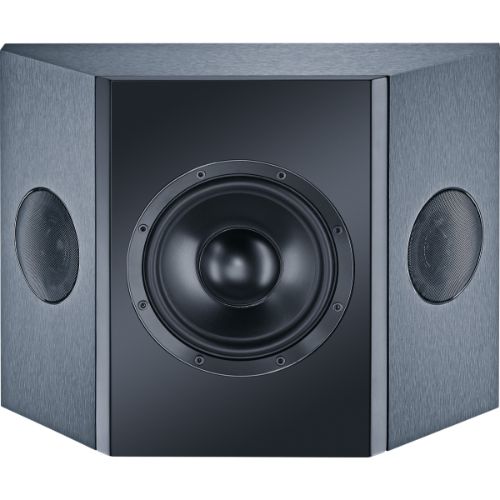

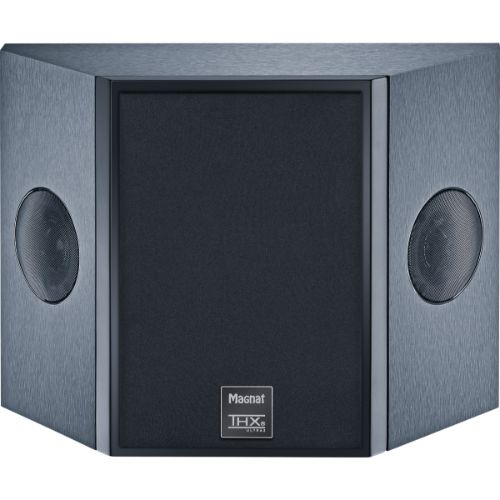

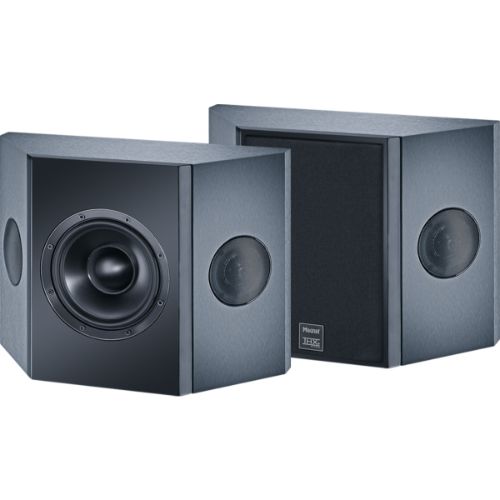

Magnat THX-RD200 Dipole Surround Speakers
High power performance with great spatial representation
Key Features-
- Outstanding surround sound in cinema quality thanks to the dipole design
- Outstanding surround sound in cinema quality thanks to the dipole design
- Two high-performance 42 mm dome tweeters in dipole configuration for authentic surround sound
- Extremely powerful 17 cm woofer for punchy, dynamic surround sound reproduction
- Flat trapezoid cabinet for practical wall mounting
Product Specifications-
Principle-
- 2 way, sealed
- THX Ultra2-certified dipole surround Speaker
Drivers-
- 2 x 1.65″ dome-tweeter
- 6.5“ woofer-midrange
Power Handling(RMS/Max.)– 150 / 240 watts
Sensitivity- (2.8V/1M) – 89 dB
Impedance – 4 – 8 Ohms
Frequency Response – 80 – 27.000 Hz
Crossover Response – 1.500 Hz
Recommended amplifier power- > 40 Watts
Dimensions(WXHXD) – 400 x 300 x 160 mm
Weight- 7.6 kg
HIGH-PERFORMANCE DIPOLE SURROUND LOUDSPEAKER-
- THX Ultra2-certified dipole surround Speaker
- All of the chassis have been specially developed for the Cimema Ultra set in order to meet the very strict requirements of the THX Ultra2 standard
- Enveloping surround soundscape without speaker localisation due to the special chassis layout
- Specially tuned crossover for optimally diffuse sound emission according to the strict requirements of the THX Ultra2 standard
- Top acoustic performance through individual components developed for high performance in all details
- Markedly compact and flat enclosure for easy and unobtrusive integration into every home cinema system
- Various wall-mounting options
- Can also be used according to the THX Ultra2 guidelines as a rear surround dipole loudspeaker
Woofer -Midrange
- Rigid ceramic/aluminum sandwich cone and dust cap for optimum precision
- 8 screw fixings for firm anchoring in the baffle
- Metal-Core-Technology
- Flow-optimised, highly stable die-cast aluminium cage to avoid compression effects and resonances
Tweeter–
- Fine mesh cover grille for a dscreet look
- Multiple damped coupling volume for particularly low resonance frequency
- Extremely large 42 mm high-performance polyfibre-compound cone
- Highly resilient precision voice coil on a ventilated aluminium support
- Solid die-cast aluminium enclosure with large pole piece hole
- Computer-optimised Waveguide front panel with integrated diffusor for optimum dispersion characteristics according to the strict THX Ultra2 standard
- Extremely powerful neodymium annular magnet system for the highest efficiency and outstanding broadband capability
Crossover-
- Single-wiring connection terminal with gold-plated, acrylic sealed terminals
- Amplitude and phase-optimised crossover to meet the strict THX Ultra2 standard
Cabinet-
- Cinema Ultra stealth design comprising: o offset baffle in a high-quality deep black silk matt lacquer finish o durable brushed-metal textured film in anthracite on the body o front panel and trim rings in matt black with a black chrome gloss ring o magnetically held cloth cover on a thin MDF frame o low-reflection metal logo in brushed titanium look
- Closed housing for reproduction absolutely free of background noise at high levels according to the THX Ultra2 standard
- Very stable, braced MDF enclosure with particularly low-resonance, 30 mm thick baffle
- Sophisticated mounting system with numerous variationso Wall-fixing mountings according to the widespread VESA standard, hole pattern 100x200mm M4;
o Stable metal brackets for wall mounting with silicone spacers;” - Removable fabric protection grille with optimum sound transmission and invisible magnet attachment
Cabiner surface-
- Front: black silk matt / body: textured film – anthracite
