Description

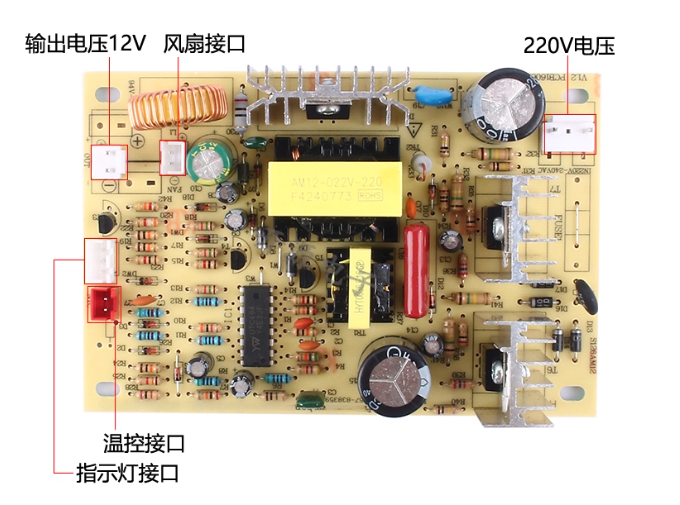

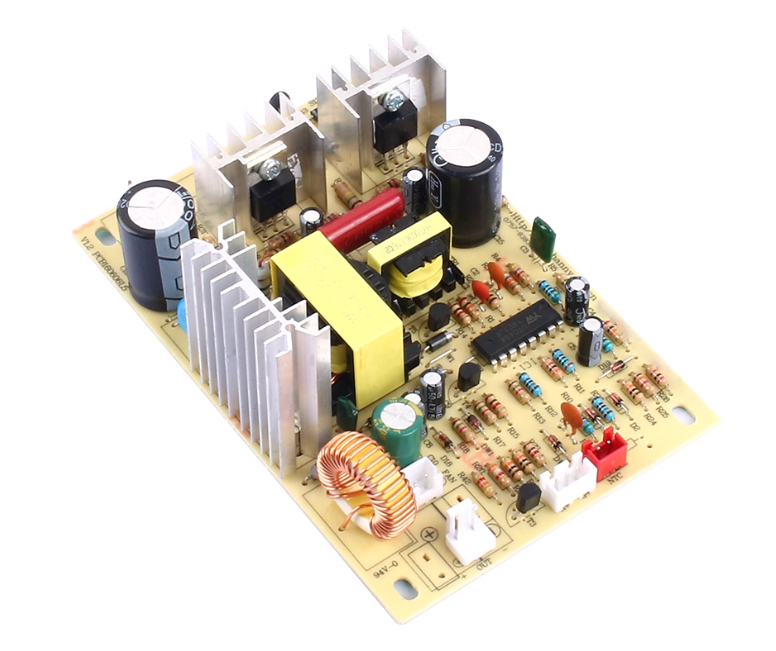

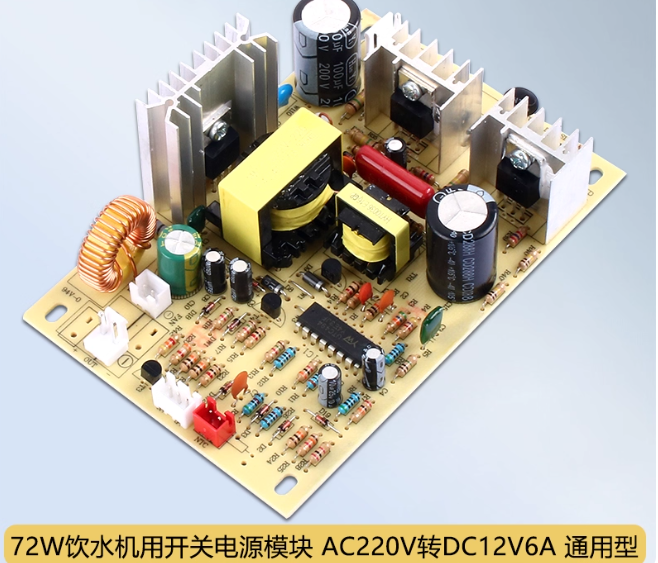

The Kopen Electronic Refrigeration Power Board is a high-performance cooling circuit board designed for water dispensers and similar refrigeration systems. Ideal for homes, offices, and commercial dispensers, it ensures reliable cooling with a 12V output and 220V input configuration. Its efficient air-cooling design and durable construction provide consistent performance and long-term stability.
✅ Key Features
-
12V electronic power board designed for water dispensers
-
Efficient air cooling for stable temperature control
-
Operates with a 220V input and 12V single output
-
Compact and lightweight design for easy installation
-
Supports up to 6A output current for reliable performance
-
Ideal for electronic cooling and refrigeration applications
✅ Technical Specifications
| Specification | Details |
|---|---|
| Model | V1.2 PCB160606L5 |
| Cooling Method | Air Cooling |
| Input Voltage | 220V |
| Input Current | 6A |
| Output Voltage | 12V |
| Output Current | 6A |
| Output Type | Single |

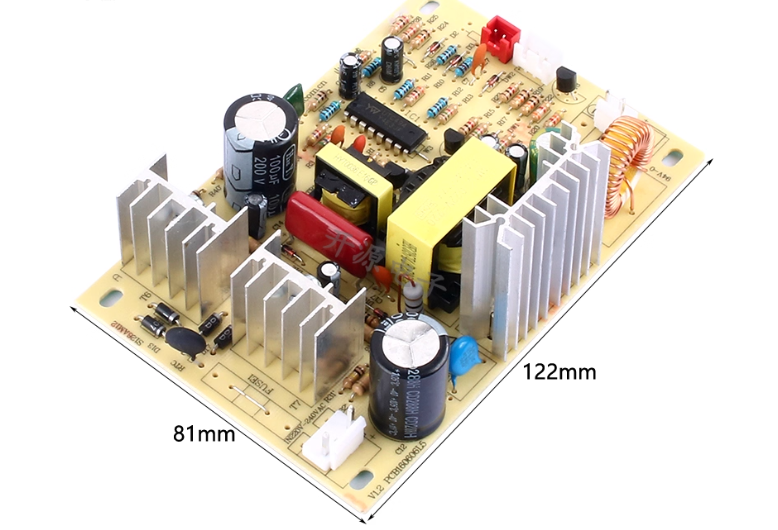

| Dimensions | 12.2 × 8.1 × 4.2 cm |
| Weight | 0.25 kg |
| Application | Water Dispenser Refrigeration System |
