Description

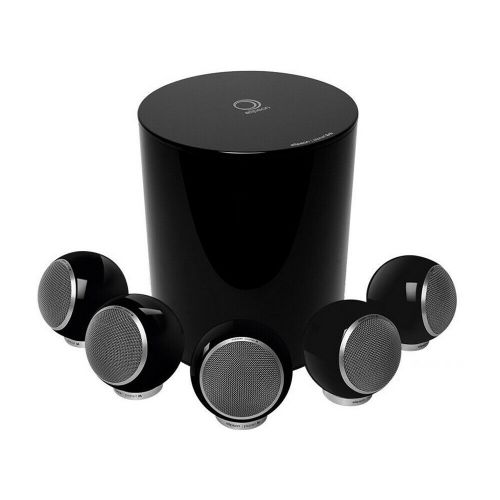

Elipson Planet M 5.1 speaker system

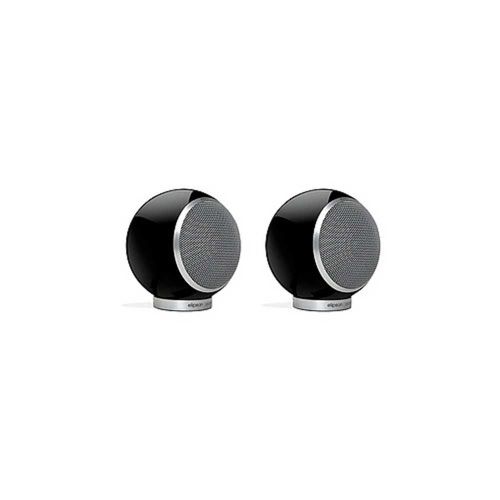

Much more compact, the Elipson Planet M speakers use a 10 cm diameter driver and consequently a closed load. There is no question of forcing such small speakers to go down into the bass. The decision was therefore made to limit them to the reproduction of the upper bass (up to 90 Hz). The use of a subwoofer is then strongly recommended, like the Elipson Planet sub specially developed for the occasion.
Speaker Installation Accessories(Sold seperately)
Speaker Specifications-
Admissible power: 60 watts
Recommended power: 30 to 80 watts
Load closed
Speakers
1 x 10 cm 2-way coaxial with tweeter
Paper membrane and fabric dome
Measures
Bandwidth (+/- 3dB): 90 – 22000Hz
Impedance: 6 ohms
Sensitivity: 88dB
Filtered
Cutoff frequency: 2500Hz
Slope: 6-12 dB /octave
Terminal block type: Simple wiring
Terminal block finish: Silver plated
Internal wiring: 99.99% OFC
Table stands included
Dimensions (d): 150mm
Weight: 1.7 kg (each)
Subwoofer Specifications-
The Planet Sub carries the genes of Elipson’s Planet range : its exceptional design and uncompromising audio performance testify to this prestigious lineage.
Equipped with a 20 cm driver and featuring bass-reflex technology, this subwoofer is particularly responsive in the upper-bass register in order to support compact surround speakers. Its active class-D amplifier delivers up to 200 watts and its response reaches down to 30Hz, giving it a sense of versatility that allows it to be equally as suited for use in a stereo installation as in a home cinema installation.
Thanks to its adjustable cutoff frequency, the Planet Sub can be paired with other types of speakers (compact models, floorstanding models…).
Its cylindrical design promotes a very fluid internal airflow, while the down-firing driver allows for placement anywhere in the listening room. Combining elegance and performance, the Planet Sub is designed to ensure harmonious integration with Elipson’s spherical speakers.
Subwoofer Specifications-
Amplifier power: 200 watts
20cm speaker
Amplifier Type: Class D
Bandwidth: 30 – 240 Hz
Inputs: line and speaker
Load Type: Bass Reflex
Phase adjustment: 0/180°
Dimensions (W x H x D): 316 x 393 x 316mm
Weight: 10kg
