Elac ICV-31W Ceiling Speakers
Custom Silk-Dome Tweeter
This model’s custom silk dome tweeters have been developed for low mass and smooth, extended high frequency response.
Custom-designed Woofers with Polypropylene Cone
Polypropylene is employed due to its improved internal damping and smooth high frequency roll-off.
Intricate Crossover
A custom multi-element crossover with audio-grade components is implemented to ensure smooth transition between the drivers.
Product Specifications
- Speaker type: 2-way, rear side open
- Tweeter: 1 x 3/4″ inch soft dome
- Woofer: 1 x 3.8-inch polypropylene cone
- Crossover frequency: 3,000 Hz
- Frequency response: 76 to 20,000 Hz
- Sensitivity: 87 db at 2.83 v/1m
- Recommended amplifier power: 30 – 100 W
- Nominal/peak power handling: 50/80 Watts
- Nominal impedance: 6 Ohm
- Binding posts: Metal spring terminals
- Finish: Black baffle/White grille

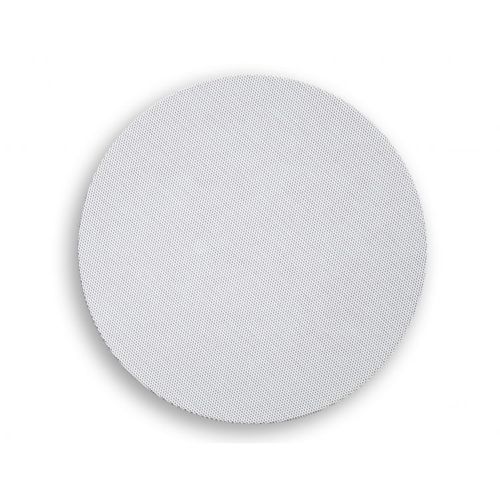

- Grille: Metal magnetic / Paintable
- Accessories included: Cutout template, manual
- Dimensions (diameter): 4.25 in / 108 mm
- Cut-out (diameter): 4.00 in /102 mm
- Mounting depth: 4.05 in / 103 mm
