Description

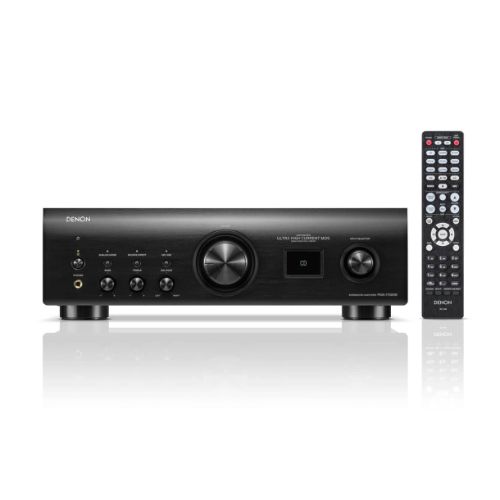

Denon PMA-1700NE Integrated Amplifier
This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.You can drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms.
It has advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.
Product Specifications-

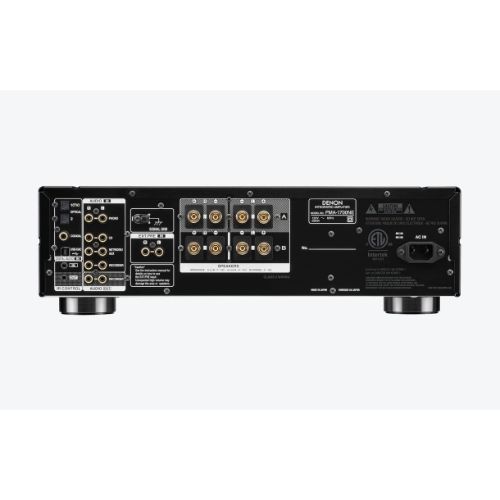

| Phono Input | Yes (MM / MC) *default=MM |
| Analog Input (include Phono) / REC Out (RCA) | 4/1 (PHONO/ CD/ AUX/ RECORDER) |
| Optical input / output (Maximum Support) | 2 / 0 (192kHz/24bit) |
| Coaxial input / output (Maximum Support) | 1 / 0 (192kHz/24bit) |
| Ext. Pre Input (Power Amp Direct) | Yes(Ext.Pre) |
| 2 sets of Speaker Output | Yes (Bi-wiring) |
| Speaker Terminal | Gold Plated |
| Headphone Output | 1 (Turn off the speaker when inserting headphone) |
| Remote Control Bus Terminal | Yes (mini) |
| AC Inlet | Yes |
| Wi-Fi | No |
| HEOS | No |
| USB B (USB DAC) | 1 (Rear) |
| Module or Main Device | New XMOS (XU210-256-TQ128 ) |
| PCM Sample Rate | ~384kHz/32bit |
| DSD Audio Streaming (DoP) | ~11.2MHz |
| Roon Certificaton | Yes(Roon Tested) TBD |
| Rated Output Power | 70W + 70W (8ohm,20Hz-20kHz,THD0.07%) 140W + 140W (4ohm, 1kHz, THD0.7%) |
| Speaker Impedance | A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm |
| Frequency Response | 5Hz – 100kHz (0~ -3dB) |
| Total Harmonic Distortion | 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz |
| Dumping Factor | 100 and over |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm MC: 200 |
| RIAA Deviation | 20 Hz – 20 kHz ±0.5 dB (MM/MC) |
| Phono Maximum Input | MM : 130mV / 1kHz MC : 10mV / 1kHz |
| Input Sensitivity: CD/LINE/RECORDER | 125 mV / 19 kohm |
| Input Sensitivity: Power Amp input | 0.85V / 47kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): (89dB) PHONO (MC): (74dB) CD: (107dB) |
| Tone Control | BASS : 100Hz ±8dB TREBLE : 10kHz ±8dB |
| Power Consumption | 295W |
| at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
| Unit (W x D x H) | 434 x 410 x 135mm 17.1 x 16.1 x 5.3in |
| Cabinet Size (W x D x H) | 434 x 374 x 135mm 17.1 x 14.7 x 5.3in |
| Net weight | 17.6kg 38.8lb |
| Packaging Dimensions (W x D x H) | 548 x 520 x 249mm 21.6 x 20.5 x 9.8in |
| Packaging gross weight | 20.4kg 45lb |
