Description
🧩 Product Overview

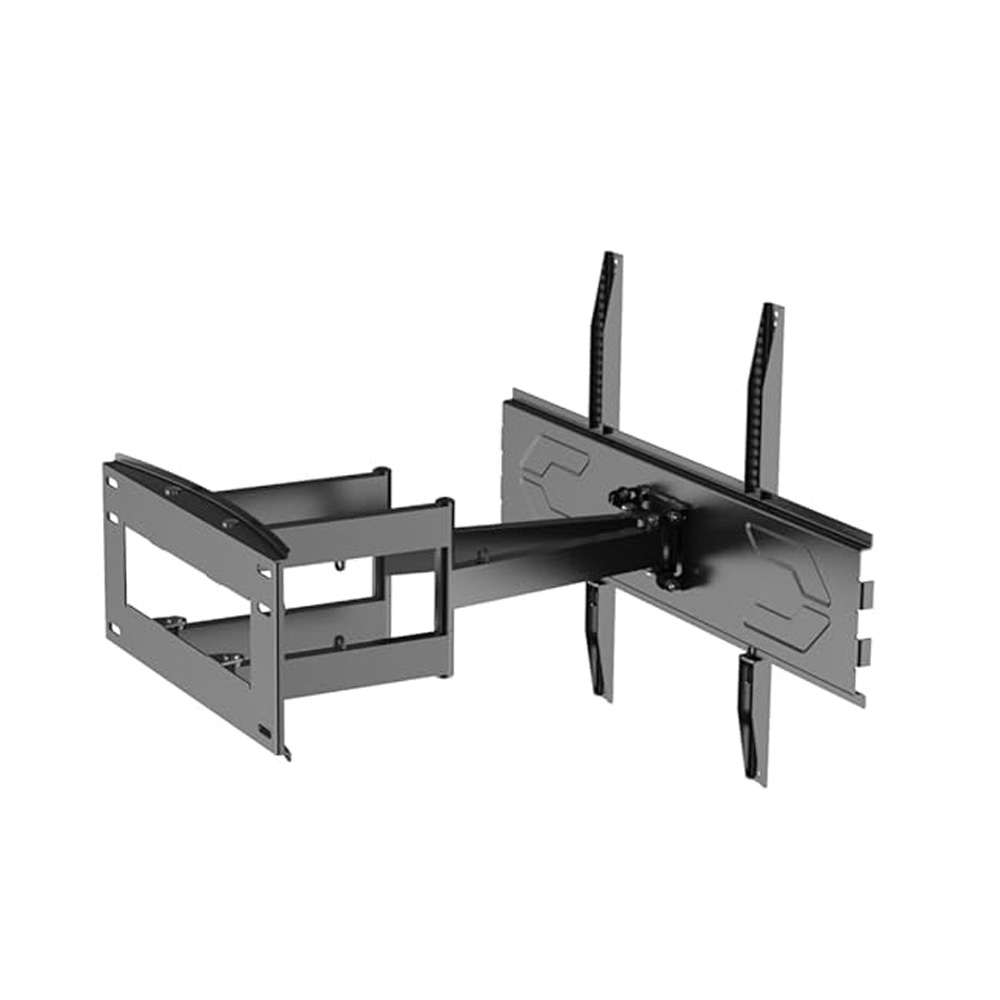

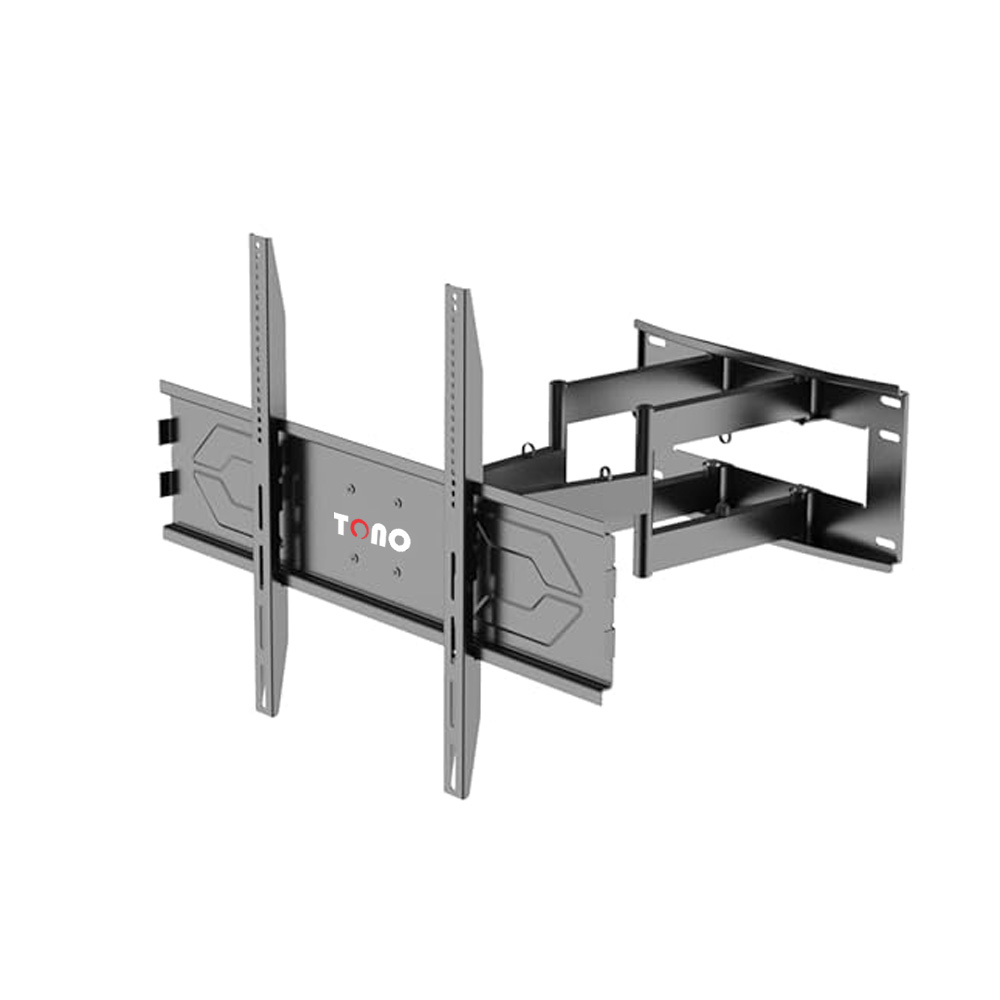

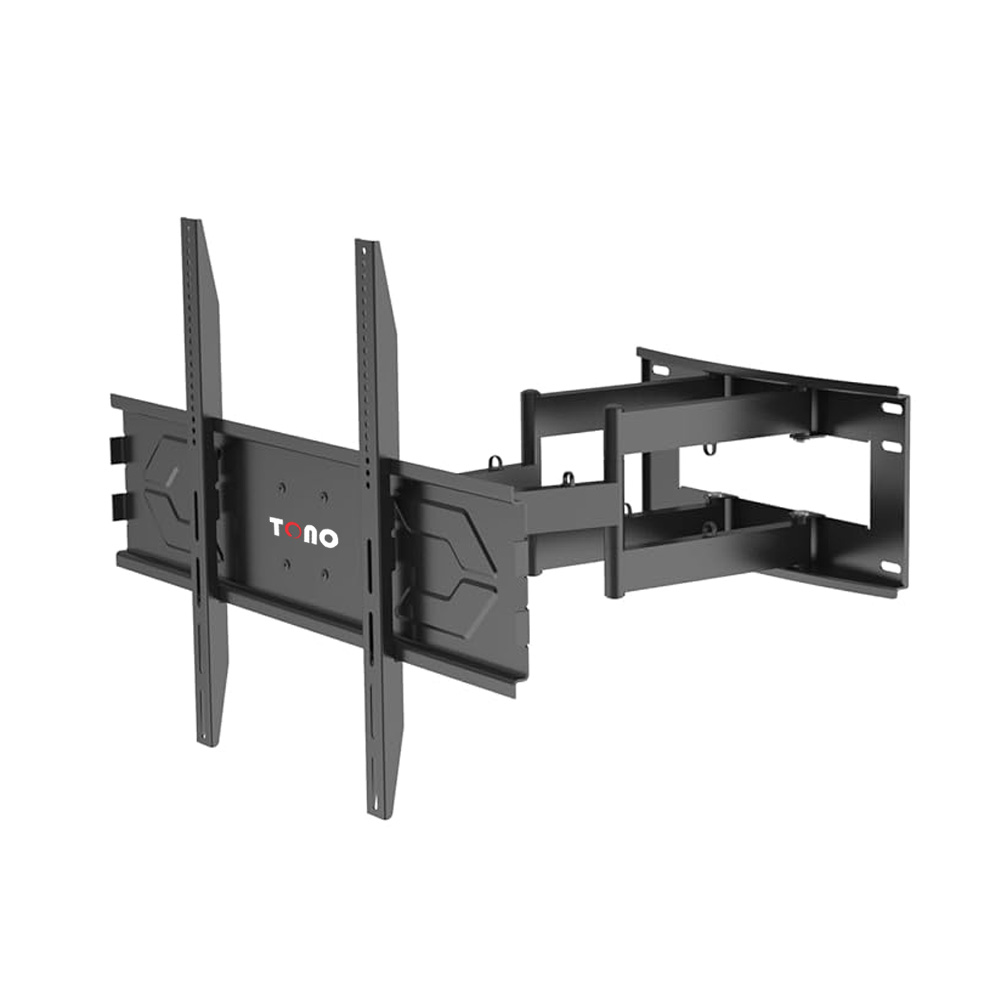

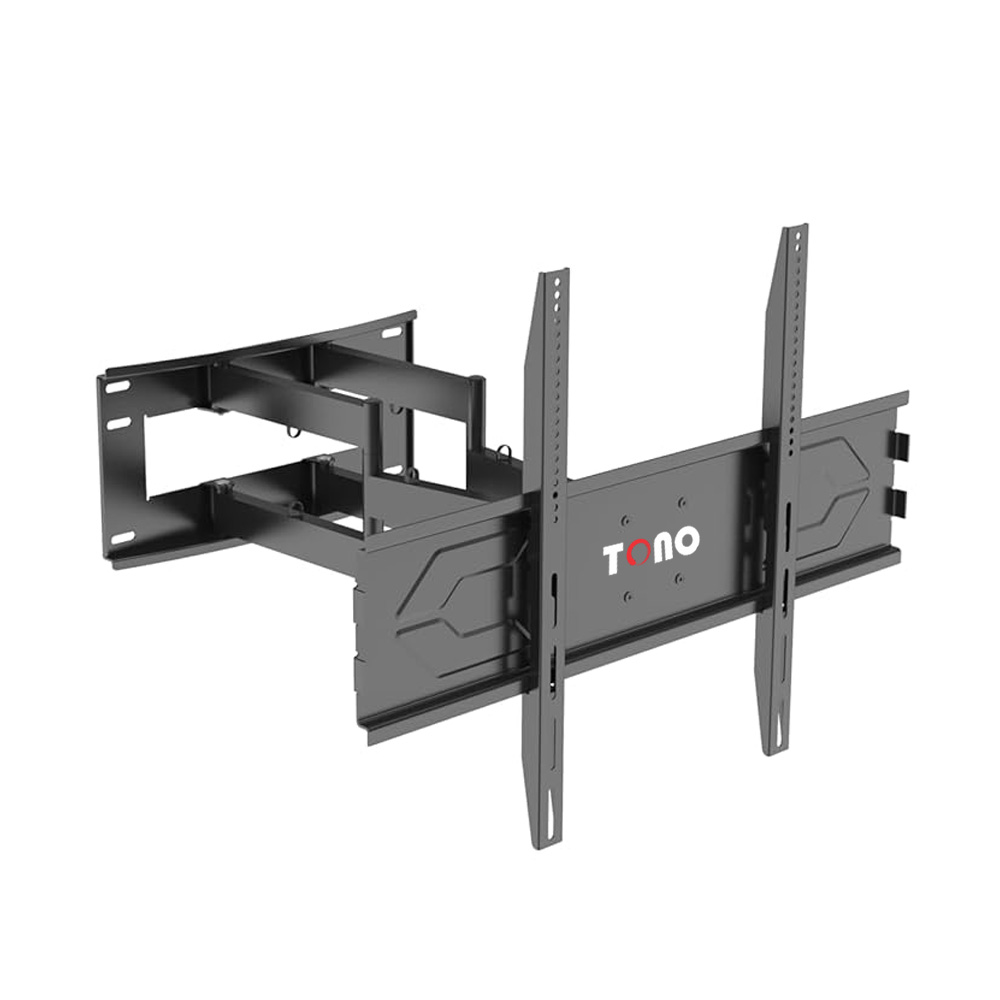

Designed for extra-large screens, the Tono R 98 Full Motion Wall Mount delivers industry-grade strength and fluid movement.
Its reinforced dual arms and wide VESA compatibility make it ideal for both residential and commercial use.
This mount balances precision engineering, sleek design, and long-reach functionality, allowing you to enjoy the perfect view from any angle.
⚙️ Key Features
-
✅ Supports 60″ – 120″ Displays – Compatible with LED, OLED and QLED TVs, as well as digital signage panels.
-
💪 120 kg Load Capacity – Industrial-grade steel arms ensure complete stability even for large commercial screens.
-
↔️ Extra-Long Reach (710 mm) – Extends from 10 cm to 71 cm for comfortable angle adjustment and maintenance access.
-
🔄 Tilt & Swivel Flexibility – Tilt ±12° to reduce glare; swivel left/right for multi-angle viewing.
-
🎯 VESA Compatibility – Fits 200×200, 400×400, 600×400, and 600×900 mm mounting patterns.
-
🧰 Easy Installation Kit – Includes bubble level, anchors, screws and manual for DIY or professional mounting.
-
🧱 Universal Mounting Surface – Suitable for concrete, brick or wood stud walls.
-
✨ Matte Black Finish – Powder-coated for a premium, durable look that matches modern interiors.
📐 Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | Tono R 98 |
| Type | Full Motion / Dual Arm Tilt & Swivel |
| TV Size Range | 60″ – 120″ |
| VESA Compatibility | 200×200 / 400×400 / 600×400 / 600×900 mm |
| Load Capacity | 120 kg / 265 lbs |
| Tilt Range | +12° / –12° |
| Swivel Range | ±45° (approx., depends on screen width) |
| Rotation (Level Adjust) | ±3° |

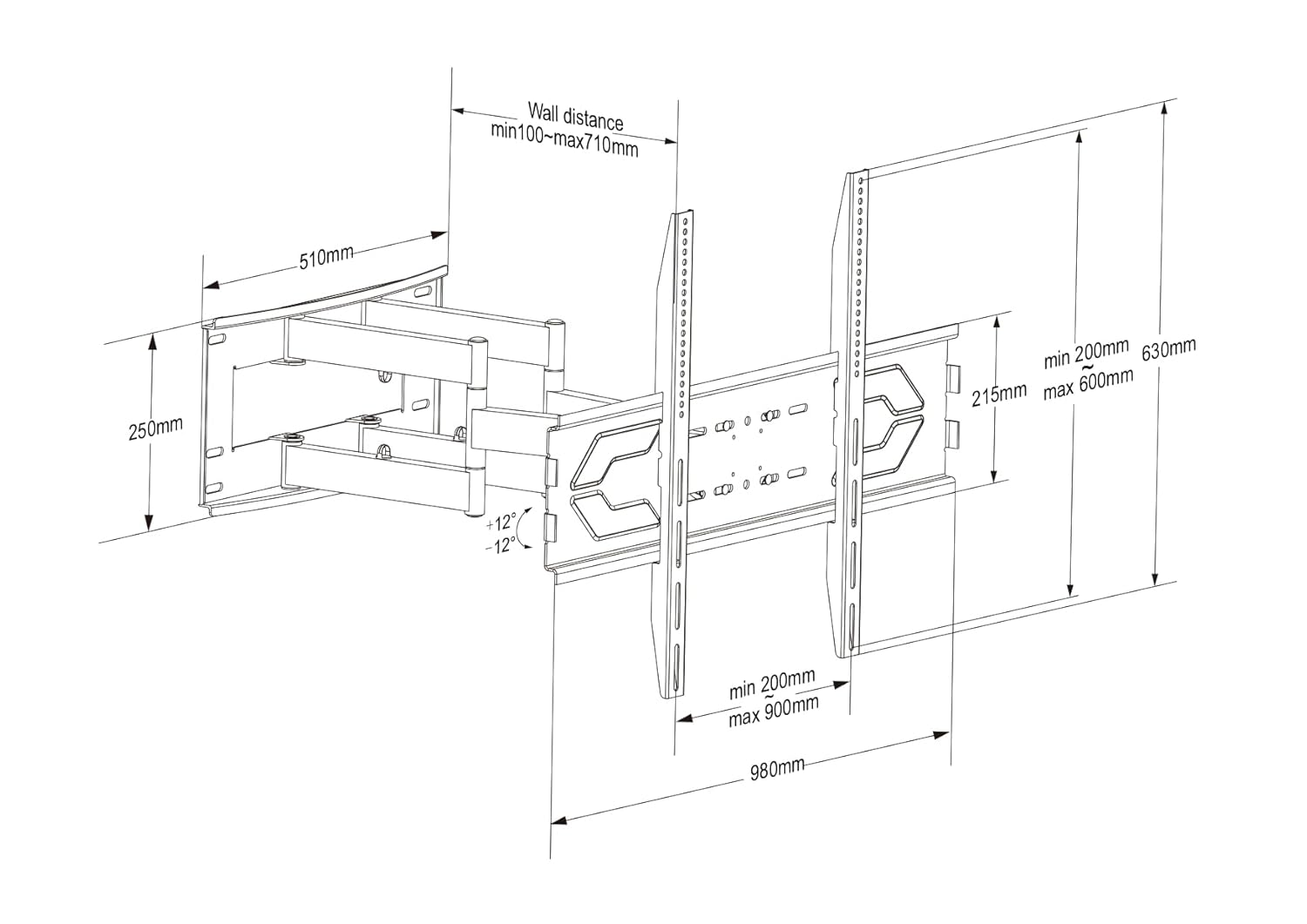

| Wall Distance (Min – Max) | 100 mm – 710 mm |
| Bracket Width | 980 mm |
| Bracket Height | 630 mm |
| Wall Plate Height | 250 mm |
| Material | Cold-Rolled Carbon Steel |
| Finish | Matte Black Powder Coating |
| Item Dimensions (L×B×H) | 98 × 10 × 63 cm |
| Item Weight | 8.5 kg |
| Package Dimensions (L×B×H) | 100 × 27 × 8 cm |
| Package Weight | 9.5 kg |
| Mounting Surface | Concrete / Brick / Wood Stud |
| Warranty | 1 Year Manufacturer Warranty |
📦 Box Contents
-
1 × Tono R 98 Wall Mount
-
1 × Installation Manual & Bubble Level
-
1 × Complete Screw & Anchor Set
-
2 × Cable Clips
-
1 × Warranty Card
💡 Why Choose Tono R 98
-
-
Engineered for professional applications and large TV installations
-
High load rating (120 kg) with tested safety margins
-
Smooth and quiet movement even under heavy load
-
Elegant finish that complements modern spaces
-
Part of Tono’s flagship mount series – trusted for quality and longevity
-
