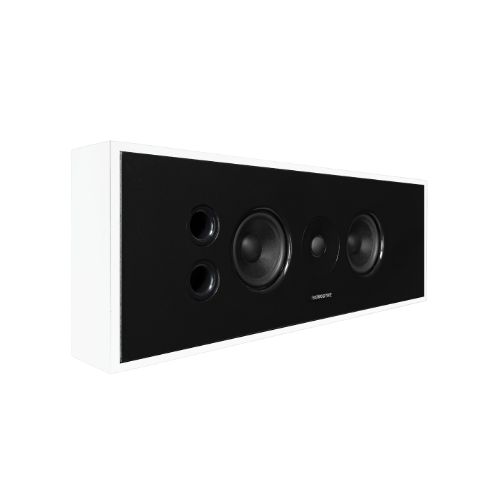

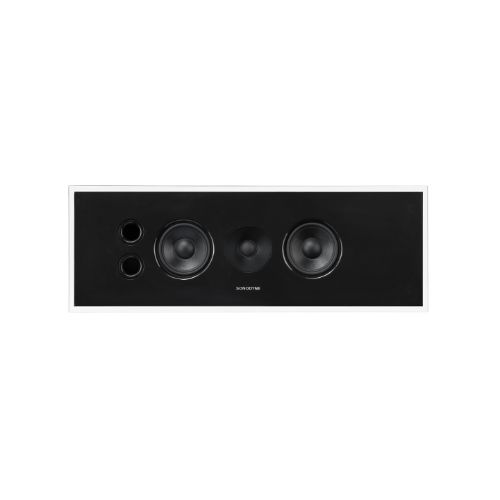

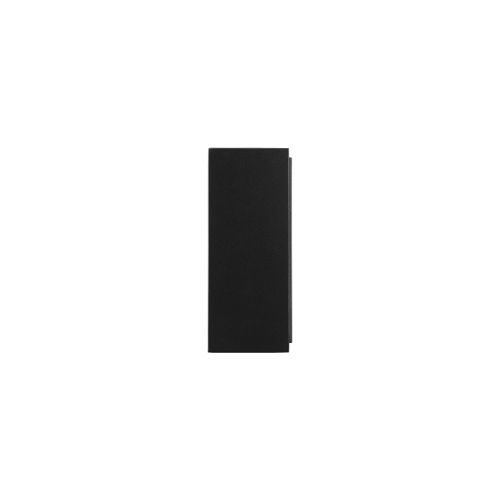

Sonodyne IWO622 On/In Wall Center Channel Speaker

Technical Specifications

System Description: 2-way, MTM, bass-reflex, on-wall/in-wall, center speaker

Enclosure: MDF

Transducer Complements:

• HF: 1-inch dome tweeter
• LF: 2 x 4-inch woofer, 2 x 4-inch passive radiators

Recommended Amplifier Power: 60 ~ 120W

Nominal Impedance: 8 Ohm

Sensitivity (1W 1M): 87dB

Frequency Response:

• 70Hz ~ 19kHz (-3dB on axis)
• Frequency Extension: 55Hz ~ 22kHz (-10dB)

Crossover Frequency: 2.5kHz

General:

Input: Gold plated binding post

Finish: Color options: semi-gloss white/black

Dimensions (WxHxD): 630 x 220 x 98

Net Weight: 6kg

Mounting Options: In-wall or on-wall

Accessories: IWO WB 64 (In-wall bracket)
