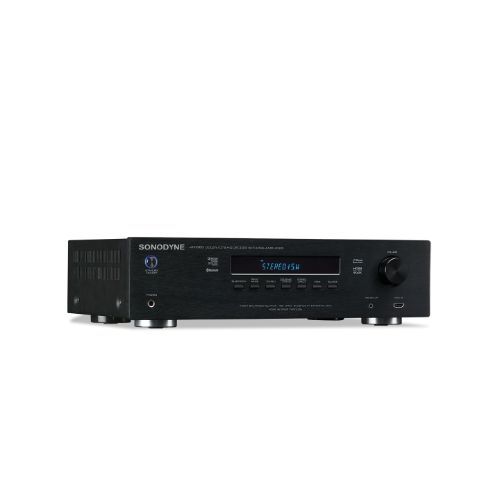

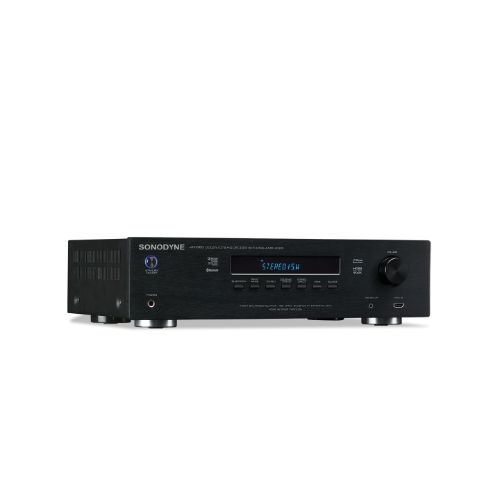

Sonodyne DE 4348 AV Receivers
The DE 4348 uses 32 bit DSP decoding of the latest multichannel formats and accepts 4K HDMI as input and pass through. It has 6 HDMIs and 2 out. The OSD allows for detailed calibration for one time setup and minor adjustments can be made on the full function aluminum die cast remote control. In the box is a specialized calibration mic for auto calibration setup, if one chooses to do so.
Products key features
HDMI 1.4 (1080P)
Aluminum Panel
VFD display
On Screen Display (OSD)
High performance Pre-amplifier
Low Magnetic Flux Leakage
Massive Toroidal Transformer
Power Consumption during Standby <0.5W (Complied with EuP standard)
32 bit DSP decoding Dolby
Product Specification

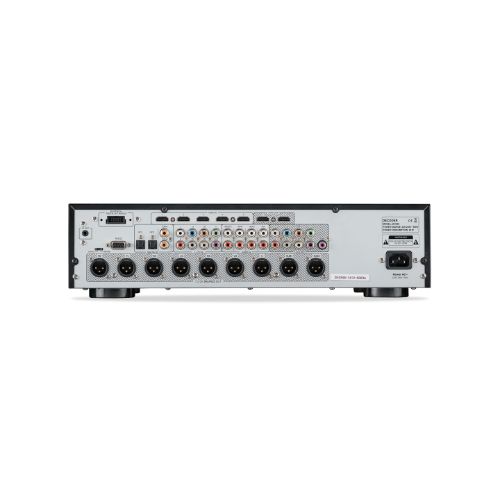

| TERMINAL | HDMI: 6 in, 2 out; Digital Coaxial: 2 in; Digital Optical: 2 in; Bluetooth digital: 1 in; Analogue Audio Inputs: 4sets (BD/DVD, GAME, VIDEO, AUX); 7.2 Line out, 2 Subwoofer Line out (after Dolby, DTS decoded); 7.2 Balance Line Out |
|---|---|
| BLUETOOTH MODULE | (Data is tested under these formats: AAC / WAV / FLAC / APE) Sampling: 44.1 k or 48 k/24 bit; THD: 0.003 at 1 k; S/N: 95 dB; Frequency Range: 20 Hz ~ 20 kHz, ± 0.5 dB (MP3 frequency response below 16 kHz); Remote handset function:Play/Pause, Forward Skip/ |
| DIMENSIONS (HXWXD) MM | 115 x 240 x 430 |
| MAINS VOLTAGE | 220-240 V~50 Hz |
