Description

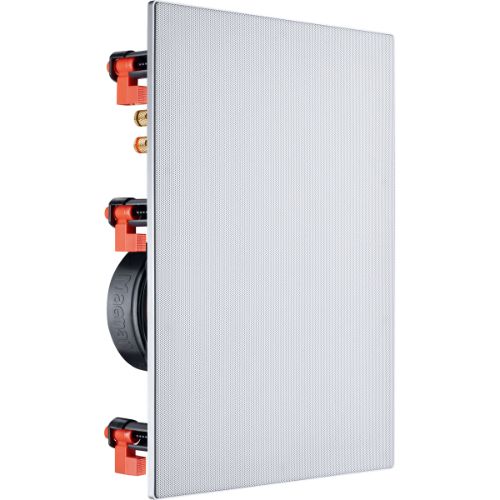

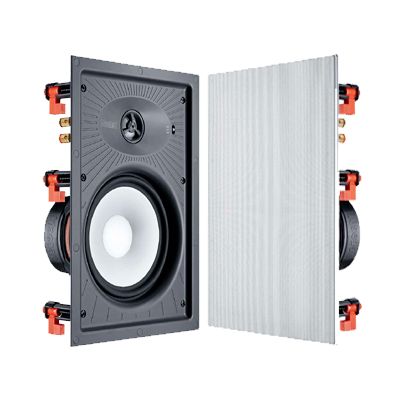

Magnat Signature IWT 162 In wall speakers
The compact version for wall installation is the IWT 162, which features one woofer and a tweeter, yet still ensures a full-blooded sound. The 16 cm woofer with its aluminum/ceramic cone and a tweeter with coated fabric dome cater for the full frequency range down to 32 Hz. The treble level can be adjusted in three stages here as well, thereby enabling a wide range of installation positions.
Key Features
- High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
- High load capacity with compact dimensions
- Uncomplicated installation thanks to a sophisticated mounting system
- Tonal structure perfectly coordinated with the Signature series, therefore can be individually combined
- Treble level can be adjusted in 3 stages
Highlights
- Designed for installation in drywalls (no housing required) or in closed volumes (30 liters or more)

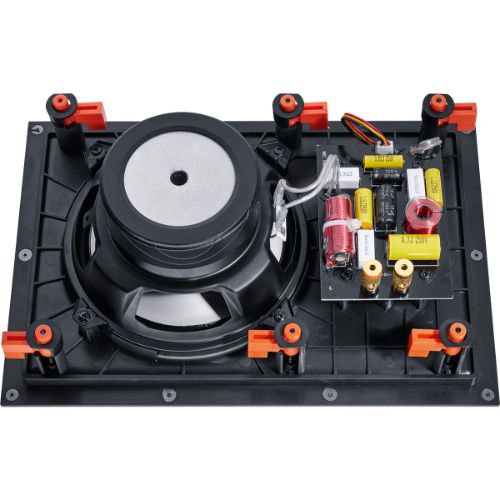

- 6fold clamping mechanism for very easy and robust installation in surfaces of up to 30 mm thickness
- Elaborate phase-optimized crossover with 3 settings for the tweeter level
- Woofer-midranges with magnet protection cover to prevent any damage and undesirable background noise
- Durable long-throw rubber surrounds for linear operation of the woofer-midrange drivers to handle even large cone excursions
- Gold-plated push terminals for cables with cross-sections of up to 6 mm²
Product Specifications
PRINCIPLE – 2-way in-wall/in-ceiling loudspeaker
DRIVERS – 1 x 6.5“ woofer-midrange,1 x 1“ dome tweeter
POWER HANDLING (RMS/MAX.) – 110 / 180 watts
SENSITIVITY (2.8V/1M) – 91 dB
IMPEDANCE – 4 Ohms
FREQUENCY RESPONSE – 32 – 28000 Hz
CROSSOVER FREQUENCIES – 3.100 Hz
RECOMMENDED AMPLIFIER OUTPUT – 20 – 180 Watts
MOUNTING DEPTH- 102 mm
OUTER DIMENSIONS (WXH) – 220 x 320 mm
CUTTING OUT (WXH) – 186 x 286 mm
WEIGHT – 2.15 kg
