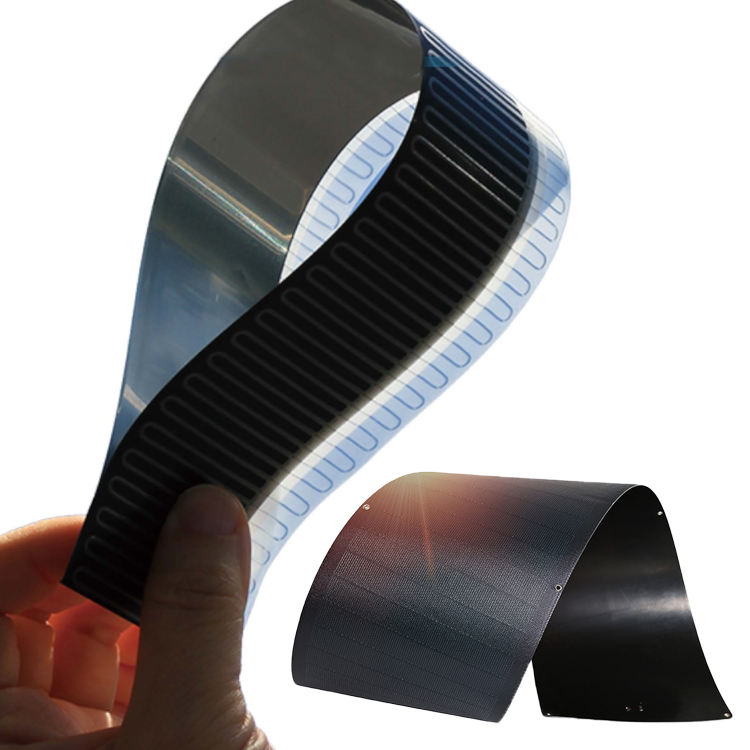

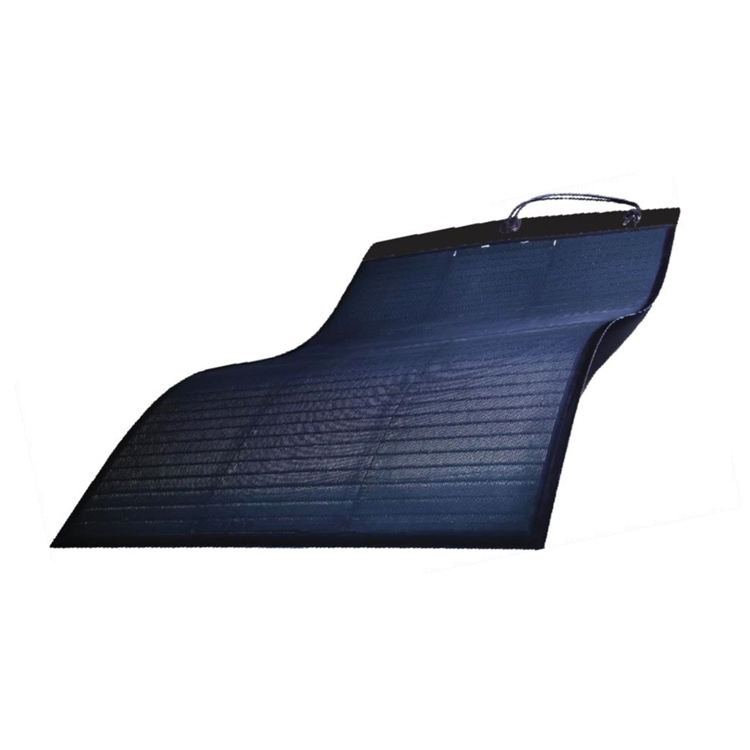

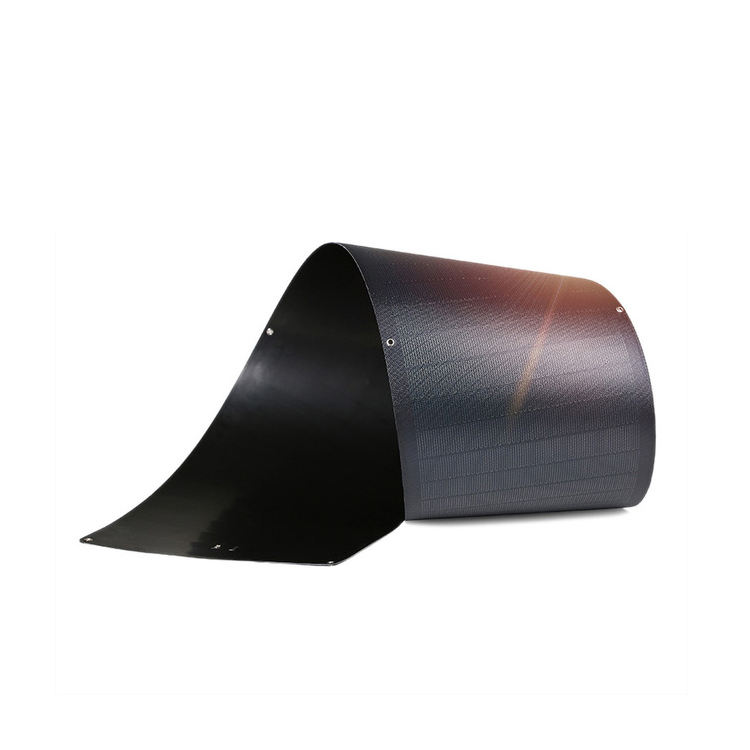

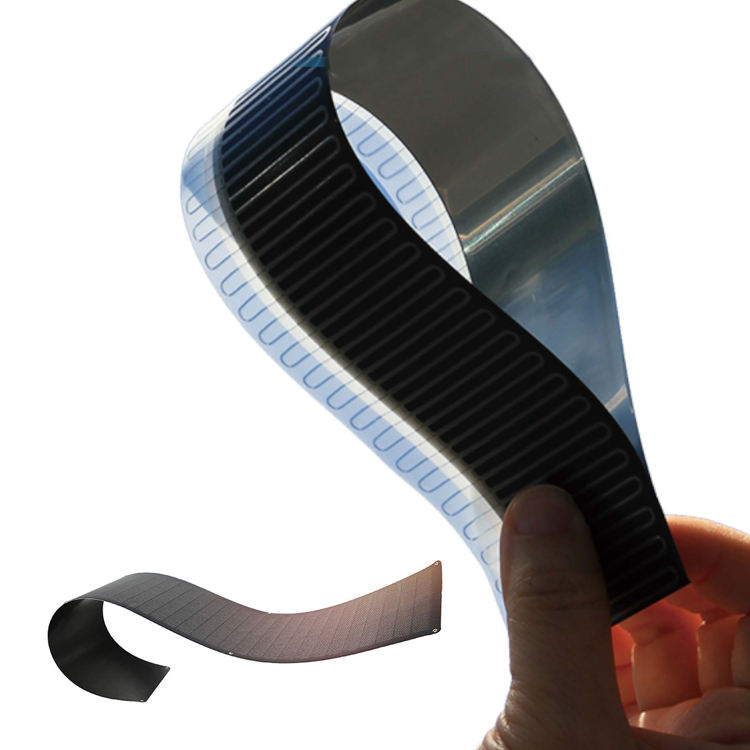

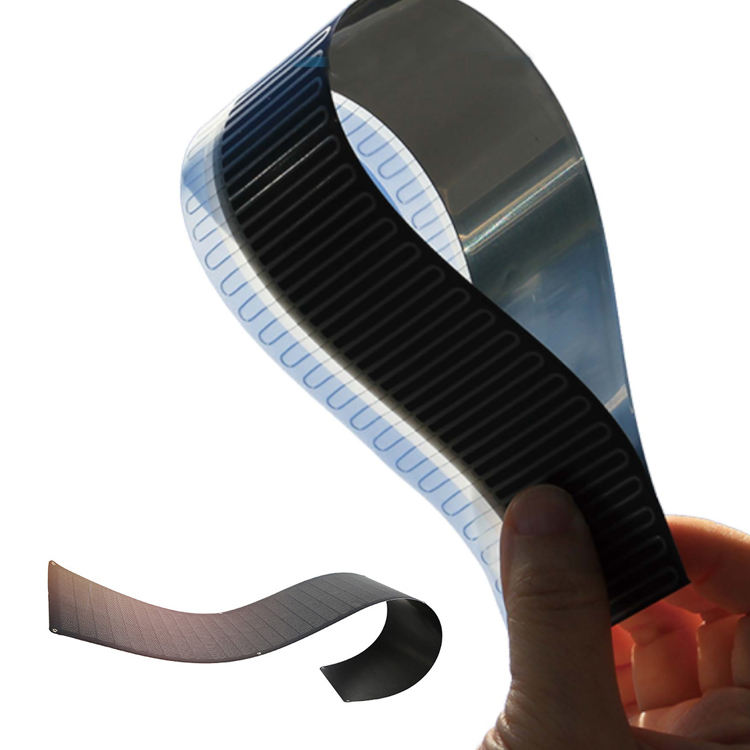

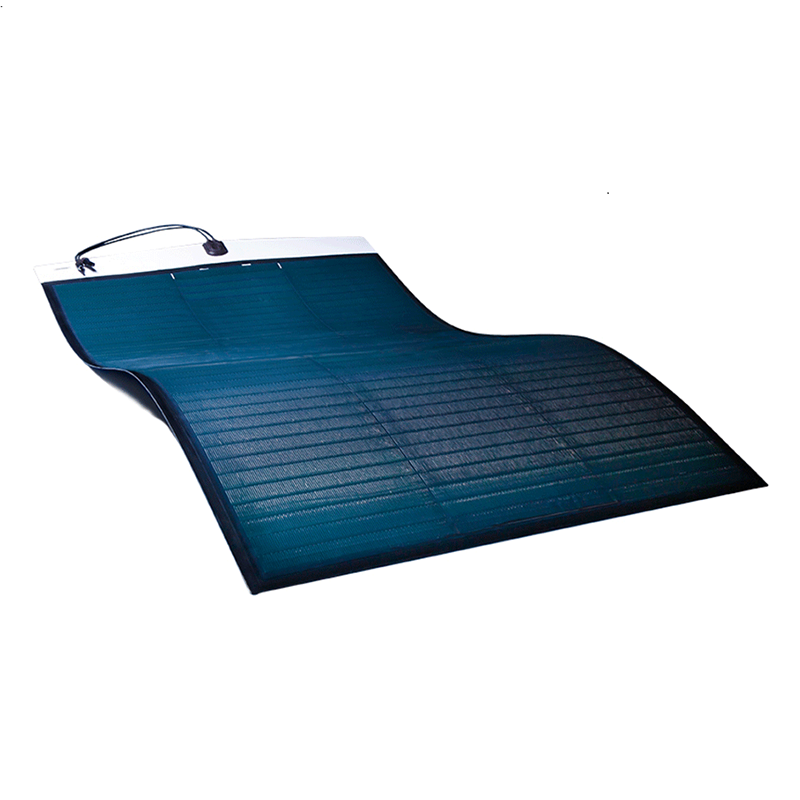

Kopen Flexible BIPV CIGS Thin Film Solar Panel with 360W High Efficiency
Original price was: ₹7,000.00.₹5,000.00Current price is: ₹5,000.00.
Power your home or building with the Kopen Flexible CIGS Thin Film Solar Panel. Designed with 360W high efficiency, IP68 protection, and CE certification, it’s ideal for modern BIPV projects and off-grid installations.
The Kopen Flexible CIGS Thin Film Solar Panel is a high-performance, lightweight solar solution designed for modern buildings and off-grid applications. Built for homeowners, architects, and solar installers, this 360W panel offers superior flexibility and easy installation on curved or irregular surfaces. With IP68-rated protection and CE certification, it ensures long-lasting durability and reliable power generation in diverse environments.
✅ Key Features
-
360W–380W Output Power for high energy conversion efficiency.
-
Lightweight & Flexible Design ideal for rooftops, RVs, and mobile setups.
-
CIGS Thin-Film Technology ensures superior low-light performance.
-
IP68 Junction Box provides strong protection against dust and water.
-
CE Certified for safety and compliance with international standards.
-
Wide Voltage Compatibility supports up to 1000V system voltage.
-
Durable BIPV Construction suited for building-integrated solar solutions.
✅ Technical Specifications
| Specification | Details |
|---|---|
| Type | Flexible, BIPV |
| Cell Type | Copper Indium Gallium Diselenide (CIGS) |
| Nominal Power (Pmax) | 360W |
| Aperture Efficiency | 15.7% |
| Panel Efficiency | 16.5% |
| Power Output Tolerance | +10/-0W |
| Maximum Power Voltage (Vmp) | 29.5V |
| Maximum Power Current (Imp) | 12.2A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 14.1A |
| Maximum System Voltage | 1000V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Panel Dimensions | 2580 × 1000 × 17 mm |
| Weight (Without Adhesive) | 5.1 kg |
| Weight (With Adhesive) | 6.2 kg |
| Junction Box Rating | IP68 |
| Cable Connections | Amphenol Technology Shenzhen (E346053) |
| Certifications | CE Certified |
| Warranty | 5 Years Workmanship, 10/25 Years Power Output |
